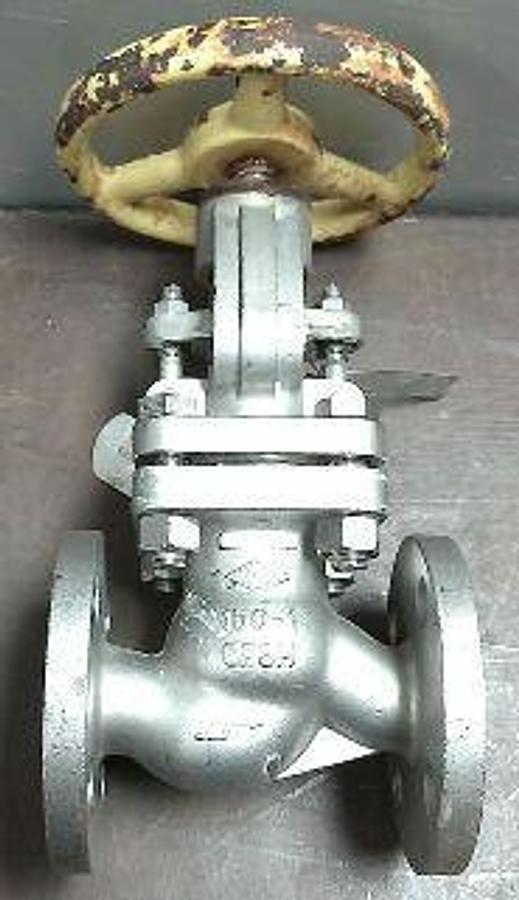

PK 1" 150 CF8M RAISED FACE FLANGED GLOBE VALVE
PK 1" 150 CF8M RAISED FACE FLANGED GLOBE VALVE
Location:Texas City, TX
Available quantity:1
or
Call 409-761-0189
Description
PK 1" 150 CF8M RAISED FACE FLANGED GLOBE VALVE
ASME B16.34
275 PSI @ 100 DEG F
TAG: GMN 00102723
EES GL01ST501. VALVE SPECIFICATIONS OVERVIEW: MANUFACTURER: PK VALVE (PK VALVE & ENGINEERING CO.
LTD.)
SHUTOFF
OR ISOLATION SERVICE)
SIZE: 1" (NPS 1 / DN 25). PRESSURE CLASS: CLASS 150 (ANSI/ASME 150#). MAXIMUM WORKING PRESSURE: 275 PSI @ 100°F
(19.0 BAR @ 38°C PER ASME B16.34 MATERIAL LIMITS FOR GROUP 2.2 MATERIALS)
THREADED
AND WELDING END)
TYPICALLY DENOTING AN OUTSIDE SCREW & YOKE (OS&Y)
BOLTED BONNET
RISING STEM CONFIGURATION WITH A HANDWHEEL OPERATOR.
Specifications
| Condition | Used |
| FIG | 15RF10SL-1EE |
| SIZE | 1" |
| BODY | CF8M |
| SEAT | 316 |
| DISC | 316 |
| STEM | 316 |
| TEMP | -20~1000 DEG F |
| API TRIM NO | 10 |
| TAG | TNC-3060-005 |
| VALVE TYPE | GLOBE VALVE (DESIGNED FOR THROTTLING |
| BODY DESIGN STANDARD | ASME B16.34 (VALVES-FLANGED |
| END CONNECTION | RAISED FACE (RF) FLANGED PER ASME B16.5 |
| FACE-TO-FACE DIMENSIONS | COMPLIANT WITH ASME B16.10 |
| 1EE | SPECIFIES THE SECONDARY DESIGN FEATURES |
