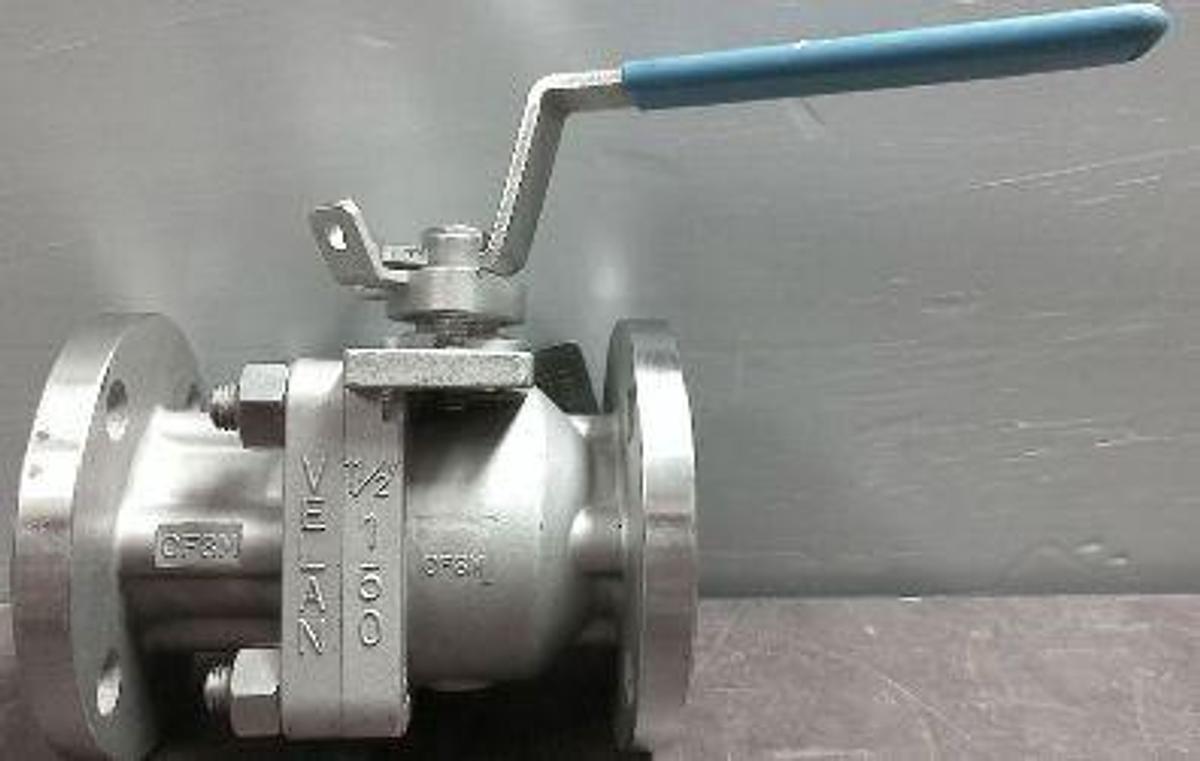

VELAN 1 ½" 150 CF8M RAISED FACE FLANGED BALL VALVE
VELAN 1 ½" 150 CF8M RAISED FACE FLANGED BALL VALVE
Location:Texas City, TX
Available quantity:1
or
Call 409-761-0189
Description
VELAN 1 ½" 150 CF8M RAISED FACE FLANGED BALL VALVE
B16.34 CLASS 150
1290212
1.5" V-E15206
ITEM 2. VELAN 1-1/2" CLASS 150 FULL-PORT MEMORY SEAL BALL VALVE (FIGURE: 01413-SSEZ
MODEL: W330) BASED ON VERIFIED INDUSTRY CATALOG SPECIFICATIONS: TECHNICAL SPECIFICATIONS: VALVE TYPE: RESILIENT-SEATED
SPLIT-BODY
2-PIECE FLANGED BALL VALVE (MEMORY SEAL SERIES)
SIZE: 1-1/2" (NPS 1.5)
PRESSURE/TEMPERATURE RATINGS: 275 PSIG CWP @ 100°F; MAXIMUM TEMPERATURE RATING UP TO 450°F
COMPLIANT WITH API 608
AND DUAL QUALIFIED TO API 641 / ISO 15848-1 FUGITIVE EMISSIONS STANDARDS.
Specifications
| Model | W330 |
| Condition | Used |
| FIG | 01413-SSEZ |
| SIZE | 1 ½" |
| CWP | 275 PSIG |
| BODY | CF8M |
| SEAT | MPTFE |
| STEM | 316 |
| BALL | 316 |
| MAX TEM,P | 450 DEG F |
| TAG | 4401221159 |
| PRESSURE CLASS | SME CLASS 150 |
| END CONNECTION | RAISED FACE FLANGED (RF) |
| BODY MATERIAL | CF8M STAINLESS STEEL (316 STAINLESS) |
| BALL & STEM MATERIAL | 316 STAINLESS STEEL |
| SEAT MATERIAL | MPTFE (MOLECULARLY ENHANCED PTFE / TFM-1600) |
| PORT DESIGN | FULL PORT |
| STANDARDS & COMPLIANCE | FIRE-TESTED TO API 607 |
