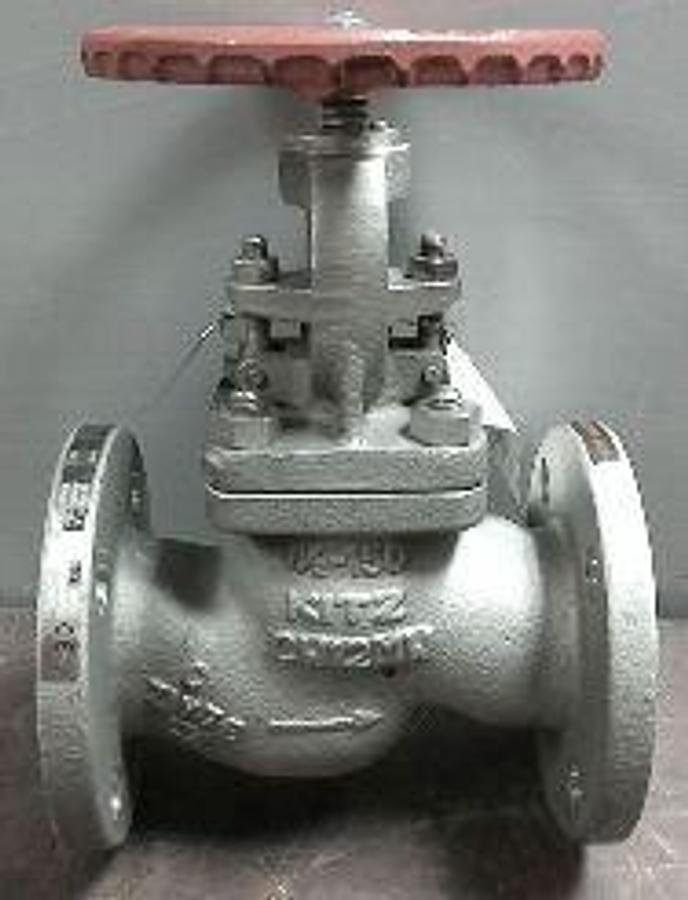

KITZ 1 ½" 150 CW12MW HASTELLOY C RAISED FACE FLANGED GLOBE VALVE
KITZ 1 ½" 150 CW12MW HASTELLOY C RAISED FACE FLANGED GLOBE VALVE
Location:Texas City, TX
Available quantity:1
or
Call 409-761-0189
Description
KITZ 1 ½" 150 CW12MW HASTELLOY C RAISED FACE FLANGED GLOBE VALVE
B16.34
170 PSIG @ 500 DEG F MAX
1.17 MPA @ 260 DEG C MAX
LOW EMISSION
CW-12MW
TAG: SIZE: 1.5"
CE EX II 2GD C T6-T3
BASEEF03ATEX0692X
HASTELLOY C (CW12MW) FLANGED GLOBE VALVE EQUIPPED WITH A BRAIDED PTFE PACKING GLAND.
Specifications
| Condition | Used |
| Serial Number | KZV160063-09-06 |
| FIG | 150UPAHC (BRAIDED PTFE) |
| CODE | UPAHC |
| SIZE | 1 ½" |
| CLASS | 150 |
| BODY | CF8M |
| DISC | N10276 |
| STEM | N10276 |
| SEAT | INT |
| TAG | KZV160063-09 |
| IDX | 447 |
| EES | GLO1NC500 |
| DATE | 17-3. THE KITZ 1 ½" 150 UPAHC IS AN ASME CLASS 150 |
