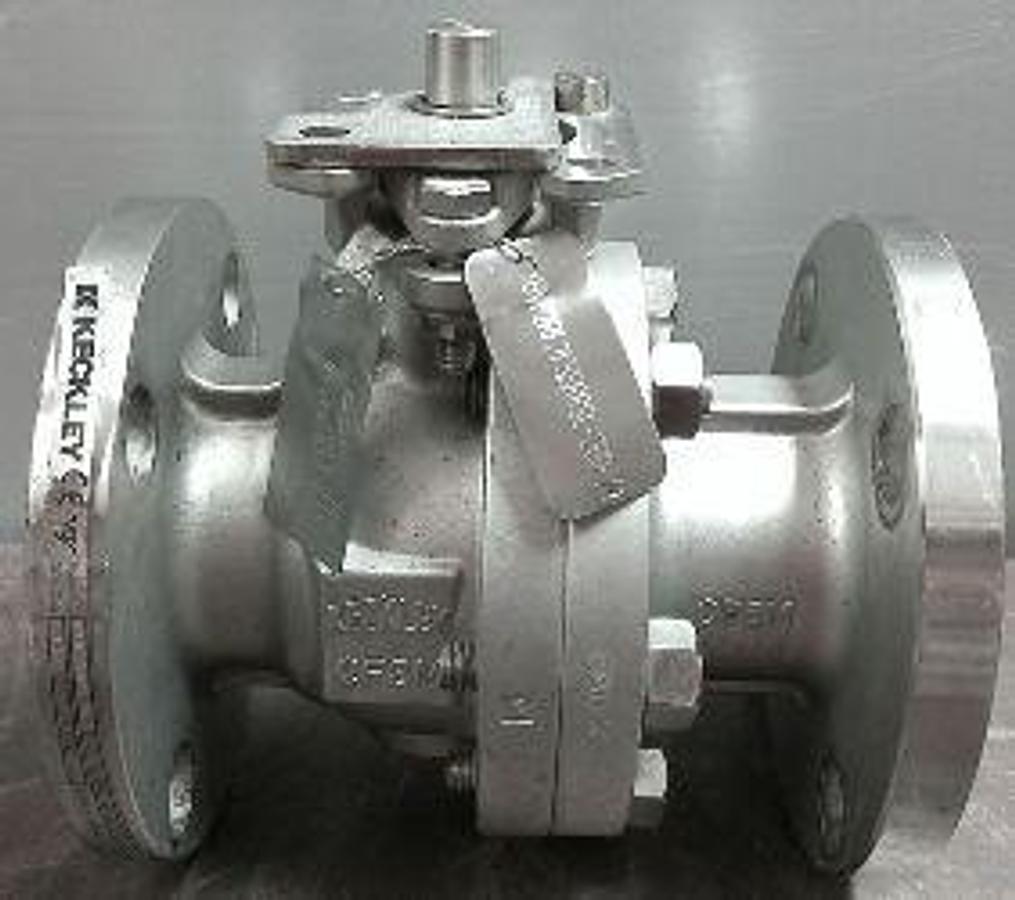

KECKLEY 2" 150 NACE CF8M FLANGED RAISED FACE BALL VALVE

KECKLEY 2" 150 NACE CF8M FLANGED RAISED FACE BALL VALVE SIZE: 2" CLASS: 150 B16.34/API608 MAX PRESSURE AT 100 DEG F 275 PSIG AT 100 DEG F 195 PSIG AT 400 DEG F TAG: GMN 10002241 IDX 310A EES BA01AT600. THE KECKLEY 2" CLASS 150 NACE FLANGED RAISED FACE BALL VALVE (FIGURE: BVF2RF2FSSRRSL-200-Z2) IS A HIGH-PERFORMANCE INDUSTRIAL VALVE CONFIGURED FOR SOUR SERVICE AND AGGRESSIVE CHEMICAL OR OIL AND GAS PIPING SYSTEMS. VALVE ENGINEERING SPECIFICATIONS: VALVE STYLE (BVF2): SPLIT-BODY 2-PIECE BOLTED BODY CONSTRUCTION. END CONNECTION (RF): RAISED FACE (RF) FLANGED ENDS. FLANGE PRESSURE RATING (2): ASME CLASS 150 FLANGE RATING. PORT CONFIGURATION (F): FULL PORT DESIGN TO PROVIDE HIGH FLOW CAPACITY (\(C_V \APPROX 500\)) AND MINIMAL PRESSURE DROP. BODY & TRIM MATERIAL (SS): ASTM A351 GRADE CF8M STAINLESS STEEL BODY AND 316 STAINLESS STEEL TRIM. SEAT MATERIAL (R): REINFORCED PTFE (R-PTFE) SEATS DESIGNED FOR HIGHER OPERATING TEMPERATURES (-50°F TO 500°F). SEAL MATERIAL (R): R-PTFE BODY SEAL / PACKING. HANDLE CONFIGURATION (SL): STAINLESS STEEL LOCKING LEVER HANDLE. VALVE SIZE (-200): NOMINAL 2-INCH PIPE SIZE. SPECIAL SUFFIX (-Z2): DESIGNATES COMPLIANCE WITH NACE MR0175 / ISO 15156 STANDARDS FOR SOUR ENVIRONMENTS UTILIZING SPECIAL MATERIALS OR BOLTING TO COMBAT SULFIDE STRESS CRACKING.
