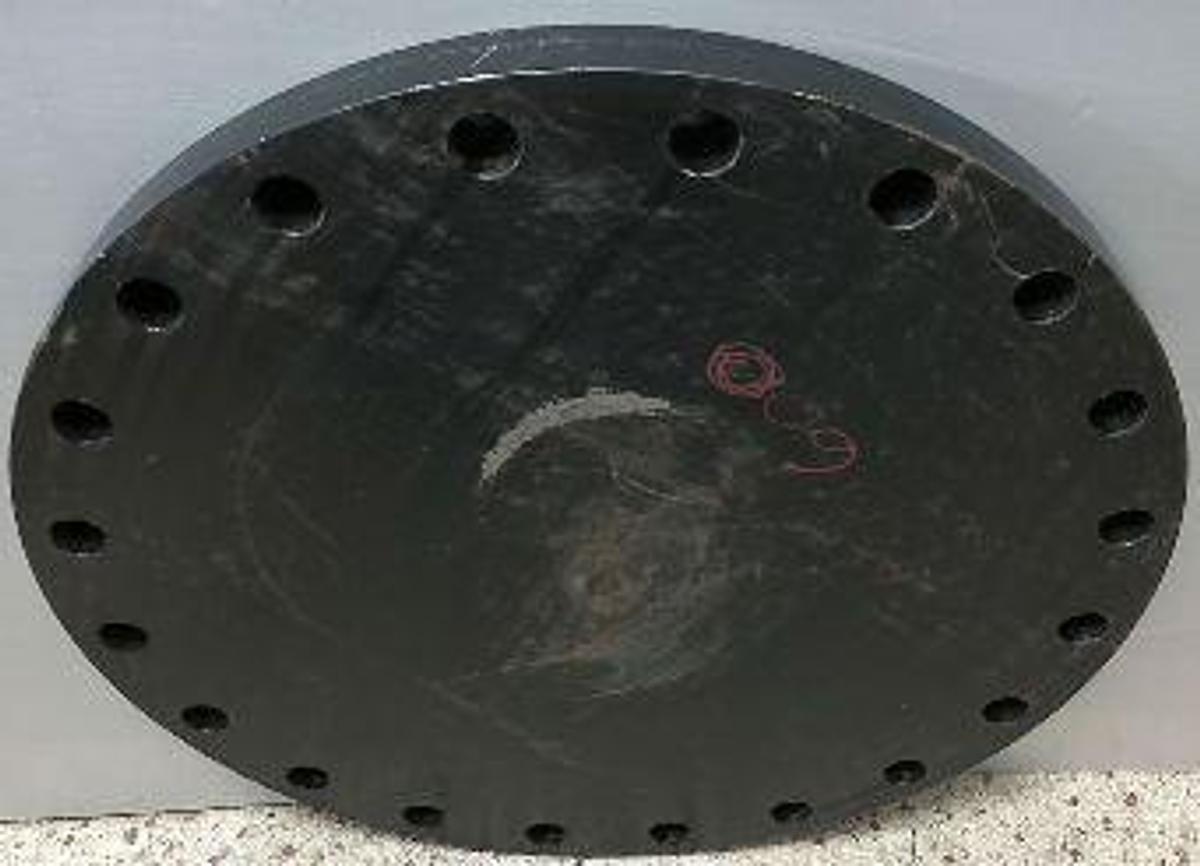

NORMA INDIA 20" 150 SA/A105 372/ B16.5 BLIND FLANGE NORMA INDIA 01-2021. ASME B16.5 CLASS 150 20-INCH BLIND FLANGE MADE FROM ASTM/ASME A105 CARBON STEEL ARE AS FOLLOWS: DIMENSIONAL SPECIFICATIONS: NOMINAL PIPE SIZE (NPS): 20 INCHES
NORMA INDIA 20" 150 SA/A105 372/ B16.5 BLIND FLANGE NORMA INDIA 01-2021. ASME B16.5 CLASS 150 20-INCH BLIND FLANGE MADE FROM ASTM/ASME A105 CARBON STEEL ARE AS FOLLOWS: DIMENSIONAL SPECIFICATIONS: NOMINAL PIPE SIZE (NPS): 20 INCHES
Location:Texas City, TX
Available quantity:1
or
Call 409-761-0189
Description
NORMA INDIA 20" 150 SA/A105 372/ B16.5 BLIND FLANGE NORMA INDIA 01-2021. ASME B16.5 CLASS 150 20-INCH BLIND FLANGE MADE FROM ASTM/ASME A105 CARBON STEEL ARE AS FOLLOWS: DIMENSIONAL SPECIFICATIONS: NOMINAL PIPE SIZE (NPS): 20 INCHES
RAISED FACE HEIGHT: 0.06 INCHES (2 MM). DRILLING & BOLTING PATTERN: NUMBER OF BOLT HOLES: 20 HOLES
Specifications
| Condition | Used |
| PRESSURE CLASS | CLASS 150 (150#) |
| OUTSIDE DIAMETER (OD) | 27.50 INCHES (700 MM) |
| MINIMUM FLANGE THICKNESS (T) | 1.69 INCHES (41.3 MM) |
| RAISED FACE DIAMETER (RF) | 23.00 INCHES (584.2 MM) |
| DIAMETER OF BOLT HOLES | 1.25 INCHES |
| BOLT CIRCLE DIAMETER (PCD) | 25.00 INCHES (635 MM) |
| RECOMMENDED STUD/BOLT SIZE | 1-1/8" |
| APPROXIMATE STUD BOLT LENGTH (WITH RF) | 6.25 INCHES (160 MM). |
