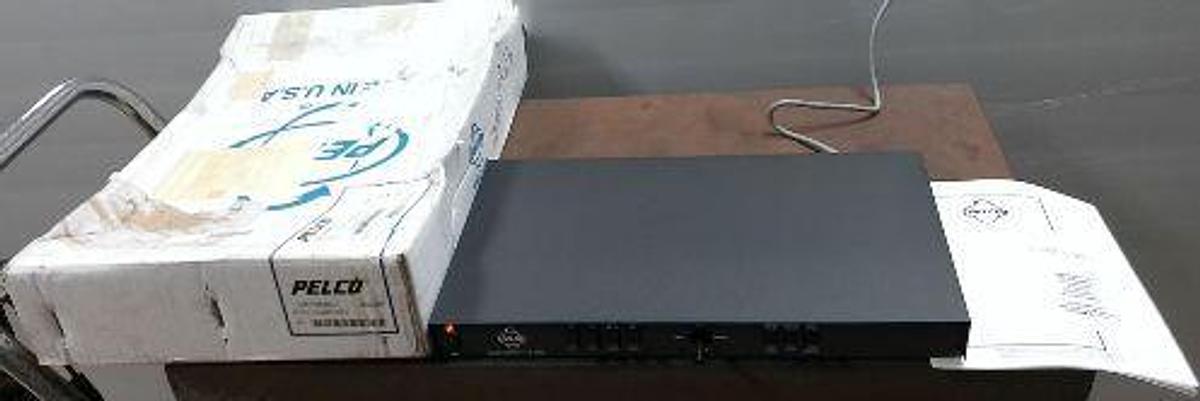

PELCO COAXITRON SYSTEM 2000

PELCO COAXITRON SYSTEM 2000 REV A0 SERIAL NO: DC:13156 SN: ADC-LMC6 VOLTS AC 115 UL LISTED COMMERCIAL CCTV EQUIPMENT 72Z5 MADE IN UNITED STATES 1) MPT9000CZ/MPT9000PZ TRANSMITTER/CONTROL (COAXITRON SYSTEM 2000) INSTALLATION/ OPERATION MANUAL C550M-E(8/97). A LEGACY DESKTOP TRANSMITTER AND PTZ (PAN/TILT/ZOOM) CONTROLLER DESIGNED TO OPERATE ANALOG SECURITY CAMERAS AND PAN/TILT RECEIVERS. ITS DEFINING FEATURE IS PELCO'S PROPRIETARY COAXITRON PROTOCOL WHICH SUPERIMPOSES TELEMETRY CONTROL SIGNALS ONTO THE EXISTING VIDEO COAXIAL CABLE DURING THE VERTICAL BLANKING INTERVAL. THIS ELIMINATES THE NEED TO RUN SEPARATE RS-422 OR RS-485 CONTROL WIRES TO EACH CAMERA.
