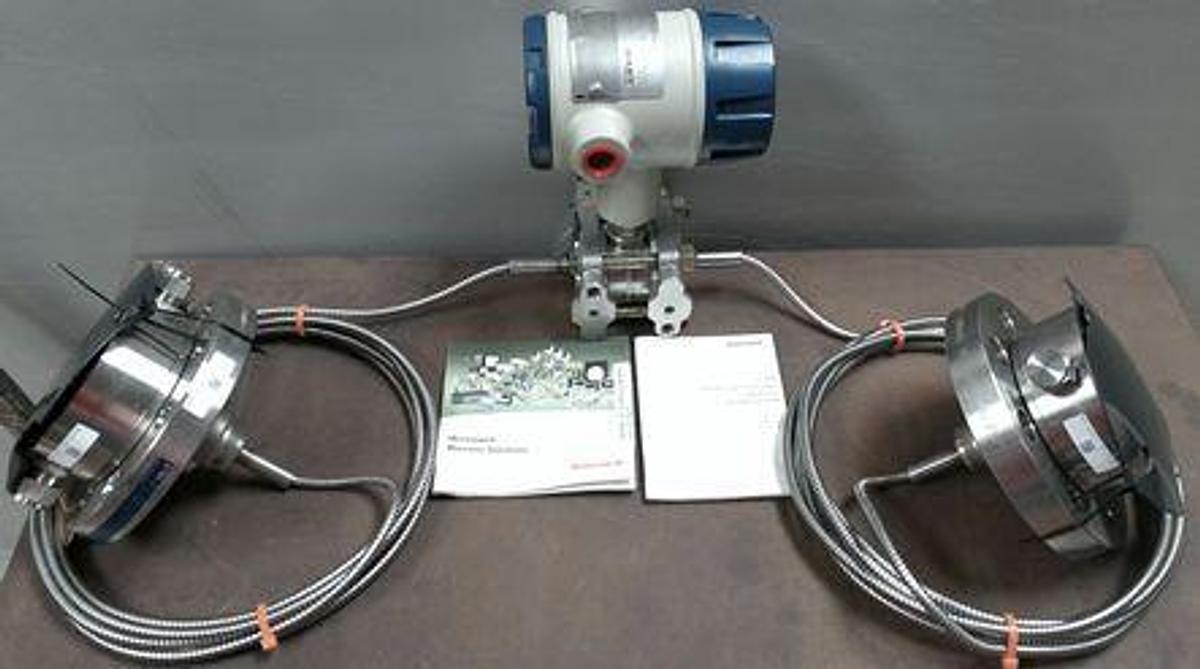

HONEYWELL ST3000 SMART PRESSURE TRANSMITTER MODEL: STR12D-51A-000000000000-H6

HONEYWELL ST3000 SMART PRESSURE TRANSMITTER MODEL: STR12D-51A-000000000000-H6,1C+XXXX HART REGISTERED CAPILLARIES 15 FT. SS WELDED CONNECTIONS FILL DC-200 CALIBRATED 0-100 INH20 39.2F CONFIGURED BY WISON MOHR S0242493 800-324-8850 S703079SJ0Y 51451864C111 DP0001-2030-S6 2" 300 A182 F316/316L 91463 FORGED IN INDIA/MFG IN USA MWP 720 DIAPH 316L GASKET GRAFOIL DP001-2030-S6 DP0145-1222-S6 316L/F1P5 2" 300#-1500# DP001-2030-S6 B16.5 2" 300# A182 F316 90377 MWP 720 DIAPH 316L GASKET GRAFOIL DP0145-1222-S6 316L/F1P5 2" 300# -1500# DP0145-1222-S6 1) HONEYWELL PROCESS SOLUTIONS CD 50035005-501 ST3000 DOCUMENTATION APRIL 2011 REV A. HONEYWELL ST 3000 SERIES 100 SMART PRESSURE TRANSMITTER EQUIPPED WITH REMOTE DIAPHRAGM SEALS KEY NUMBER (BASE MODEL): STR12D: SPECIFIES A SERIES 100 DIFFERENTIAL PRESSURE (DP) TRANSMITTER INTEGRATED WITH REMOTE DIAPHRAGM SEALS. IT FEATURES A COMPOUND CHARACTERIZED METER BODY DESIGNED TO HANDLE TYPICAL MEASUREMENT RANGES FROM 0 TO 400 INH?O (0 TO 1,000 MBAR). THIS ONE SET -400 TO 400 IN H2O. METER BODY CONFIGURATION: 5: INDICATES THE FILL FLUID INSIDE THE METER BODY. TYPICALLY THIS SIGNIFIES A HIGH-TEMPERATURE OR SPECIALIZED FILL OPTION (E.G. SYLTHERM 800 OR SPECIALIZED SILICONE) DESIGNED TO HANDLE WIDER PROCESS TEMPERATURE VARIATIONS.1: SPECIFIES THE NUMBER OF REMOTE SEALS AND CAPILLARY CONFIGURATION-TYPICALLY 2 REMOTE SEALS FORMING A BALANCED SYSTEM FOR DIFFERENTIAL OR LEVEL MEASUREMENT. A: REPRESENTS THE PROCESS HEAD AND BOLT MATERIALS INDICATING STANDARD 316 STAINLESS STEEL HEADS WITH STANDARD BOLTING. H6: SPECIFIES THE COMMUNICATION PROTOCOL AND OUTPUT FORMAT. THE H6 DESIGNATION STANDS FOR HART PROTOCOL (SMART 4-20 MA DIGITAL + ANALOG COMMUNICATION). NOTE: OLDER VARIANTS OF THIS MODEL SERIES OFTEN UTILIZED "DE" (DIGITALLY ENHANCED) PROTOCOL. 1C: INDICATES THE TRANSMITTER IS PROVIDED WITH A STANDARD M20 CONDUIT CONNECTION OR SPECIFIC STRUCTURAL MOUNTING BRACKETS/CERTIFICATIONS. ? +XXXX: REPRESENTS CUSTOM FACTORY OPTIONS WHICH USUALLY DETAIL SPECIFIC SOFTWARE CONFIGURATIONS CUSTOM CALIBRATIONS (E.G. 0 TO 100 INH?O) MATERIAL CERTIFICATES OR LOCALIZED TAGGING REQUESTS.
