FARRIS TELEDYNE 8"

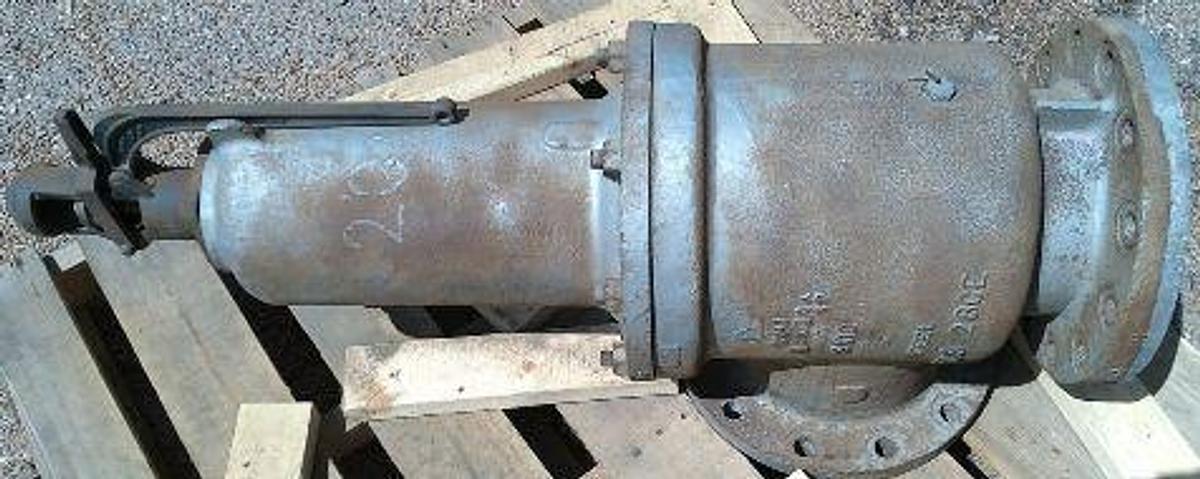

FARRIS TELEDYNE 8" TYPE: 26TA 32-170 FLANGED PRESSURE SAFETY RELIEF VALVE. SIZE & ORIFICE 8T10. FARRIS ENGINEERING 18148 01266 CM WC1 STEEL 6-8-85 SET 31.5 PSI. DELUCA VALVE & INSTR. CO. THE FARRIS ENGINEERING TYPE 26TA32-170 IS A SPECIFIC CONFIGURATION OF A FLANGED SPRING-LOADED INDUSTRIAL PRESSURE SAFETY RELIEF VALVE (PSV) BELONGING TO THE ICONIC FARRIS 2600 SERIES. MANUFACTURED UNDER THE CURTISS-WRIGHT BRAND THESE PROCESS VALVES ARE ENGINEERED TO STRICTLY CONFORM TO THE API 526 STANDARD FOR OVERPRESSURE PROTECTION IN INDUSTRIAL PLANTS. DECODING THE TYPE NUMBER: 26TA32-170: FARRIS UTILIZES A SPECIFIC ALPHANUMERIC TYPE NUMBERING SYSTEM WHERE EACH CHARACTER DEFINES THE VALVE'S PHYSICAL TRAITS MATERIALS AND PRESSURE CLASS. 26: INDICATES THE FARRIS 2600 SERIES BASE MODEL FAMILY. T: SPECIFIES THE API "T" ORIFICE SIZE (AN EXTRA-LARGE ORIFICE AREA CONFIGURATION DESIGNED FOR HIGH-CAPACITY FLOW REQUIREMENTS). A: DESIGNATES THE STANDARD ASBESTOS-FREE METAL-TO-METAL SEAT CONSTRUCTION WITH A PREMIUM FULL NOZZLE DESIGN. 32: REPRESENTS THE SPECIFIC MATERIAL COMBINATION FOR THE BODY BONNET AND INTERNAL TRIM (TYPICALLY INDICATING A CARBON STEEL BODY WITH PREMIUM STAINLESS-STEEL INTERNALS). 170: IDENTIFIES THE FLANGE PRESSURE RATING CONNECTION COMMONLY CORRESPONDING TO AN ASME CLASS 150 FLAT OR RAISED FACE CONFIGURATION. CORE TECHNICAL FEATURES: FULL NOZZLE DESIGN: MINIMIZES BODY EXPOSURE TO CORROSIVE OR HIGH-TEMPERATURE PROCESS MEDIA WHILE SIMPLIFYING LONG-TERM MAINTENANCE. ADJUSTABLE BLOWDOWN: FEATURES AN ADJUSTABLE RING SYSTEM TO CONTROL EXACTLY WHEN THE VALVE SNAPS SHUT AFTER A PRESSURE RELIEF EVENT. DUAL-CERTIFIED: BUILT IN COMPLIANCE WITH BOTH ASME BOILER AND PRESSURE VESSEL CODE SECTION VIII AND SECTION XIII FOR AIR STEAM GAS AND VAPOR CONFIGURATIONS. HIGH SEAT TIGHTNESS: UTILIZES PRECISION-GUIDED INTERNALS TO PREVENT CHATTERING LEAKAGE AND PREMATURE FUGITIVE EMISSIONS.
