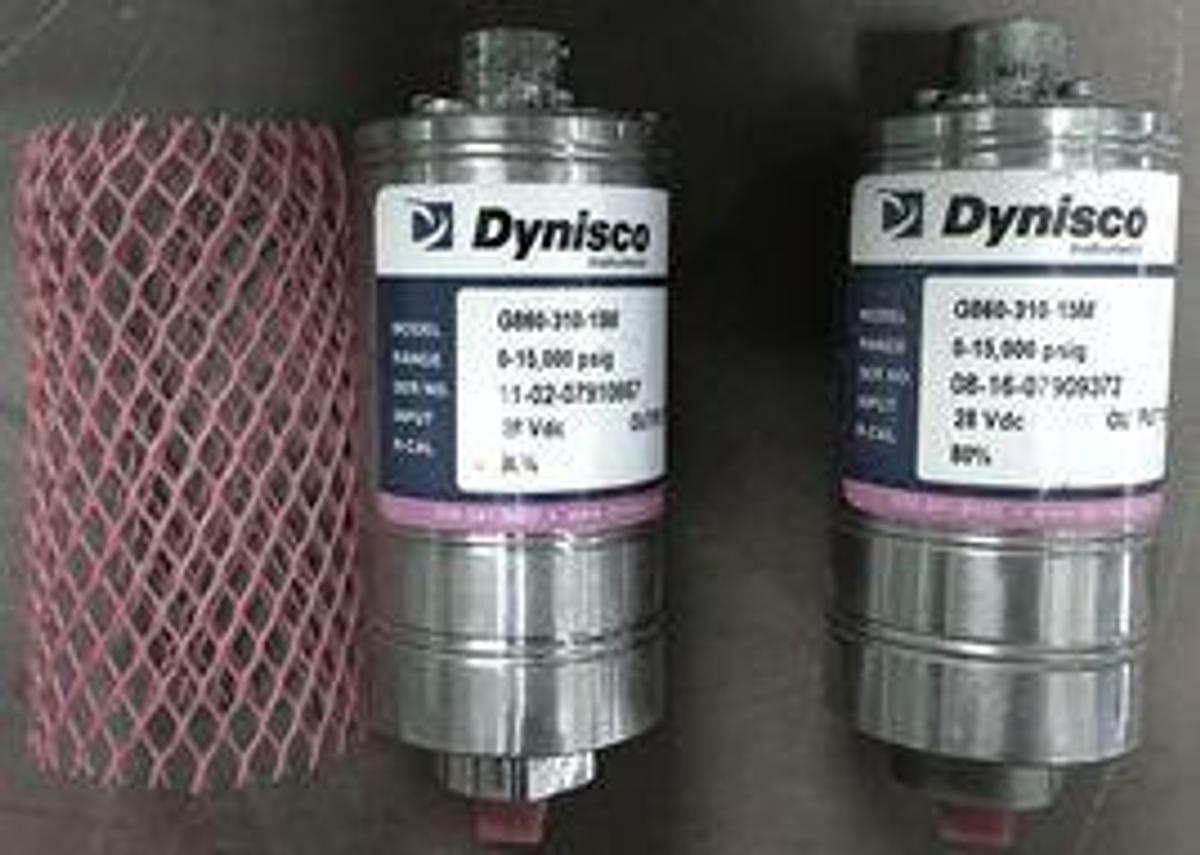

DYNISCO INSTRUMENTS HIGH-ACCURACY GENERAL-PURPOSE INDUSTRIAL PRESSURE TRANSDUCER SERIAL NO: 08-16-07909372 AND 11-02-07910667 MADE IN USA. THE DYNISCO MODEL G860-310-15M IS A HIGH-ACCURACY GENERAL-PURPOSE INDUSTRIAL PRESSURE TRANSDUCER ENGINEERED PRIMARILY FOR HYDRAULIC PNEUMATIC INJECTION MOLDING AND LABORATORY TEST APPLICATIONS. PART NUMBER BREAKDOWN: G860 (BASE MODEL): GENERAL PURPOSE PRESSURE TRANSDUCER FEATURING A 0 - 10 VDC AMPLIFIED OUTPUT AND INTERNAL ZERO/SPAN ADJUSTMENTS. 3 (PRESSURE PORT): OUTFITTED WITH AN AUTOCLAVE F-250-C INTERNAL FLUID CONNECTION. 1 (ELECTRICAL TERMINATION): FEATURES A WEATHERTIGHT BENDIX CONNECTOR (TYPICALLY A PT02H-10-6P OR EQUIVALENT 6-PIN CONNECTION). 0 (WIRING): STANDARD FACTORY WIRING DESIGNATION. 15M (PRESSURE RANGE): MEASURES A FULL-SCALE PRESSURE RANGE OF 0 TO 15,000 PSI. CORE TECHNICAL SPECIFICATIONS: SENSOR TYPE: BONDED STRAIN GAUGE FOR HIGH RELIABILITY AND EXCELLENT TEMPERATURE COMPENSATION. ACCURACY: ±0.5% FULL SCALE OUTPUT (FSO). INPUT VOLTAGE: TYPICALLY REQUIRES A 24 VDC TO 28 VDC POWER SUPPLY TO DRIVE THE AMPLIFIED HIGH-LEVEL OUTPUT. SAFE OVERPRESSURE: 1.5 TIMES THE RATED PRESSURE (SAFE UP TO 22,500 PSI). BURST PRESSURE: 2.5 TIMES THE RATED PRESSURE FOR SAFETY CONTAINMENT. CONSTRUCTION: RUGGED HERMETIC STAINLESS STEEL HOUSING (TYPICALLY 17-4 PH / 15-5 PH WETTED PARTS). CALIBRATION: INCLUDES AN INTERNAL SHUNT CALIBRATION FEATURE (R-CAL) THAT SIMULATES AN 80% FULL-SCALE OUTPUT WHEN PINS E AND F ARE SHORTED TO SIMPLIFY SYSTEM SETUP.
