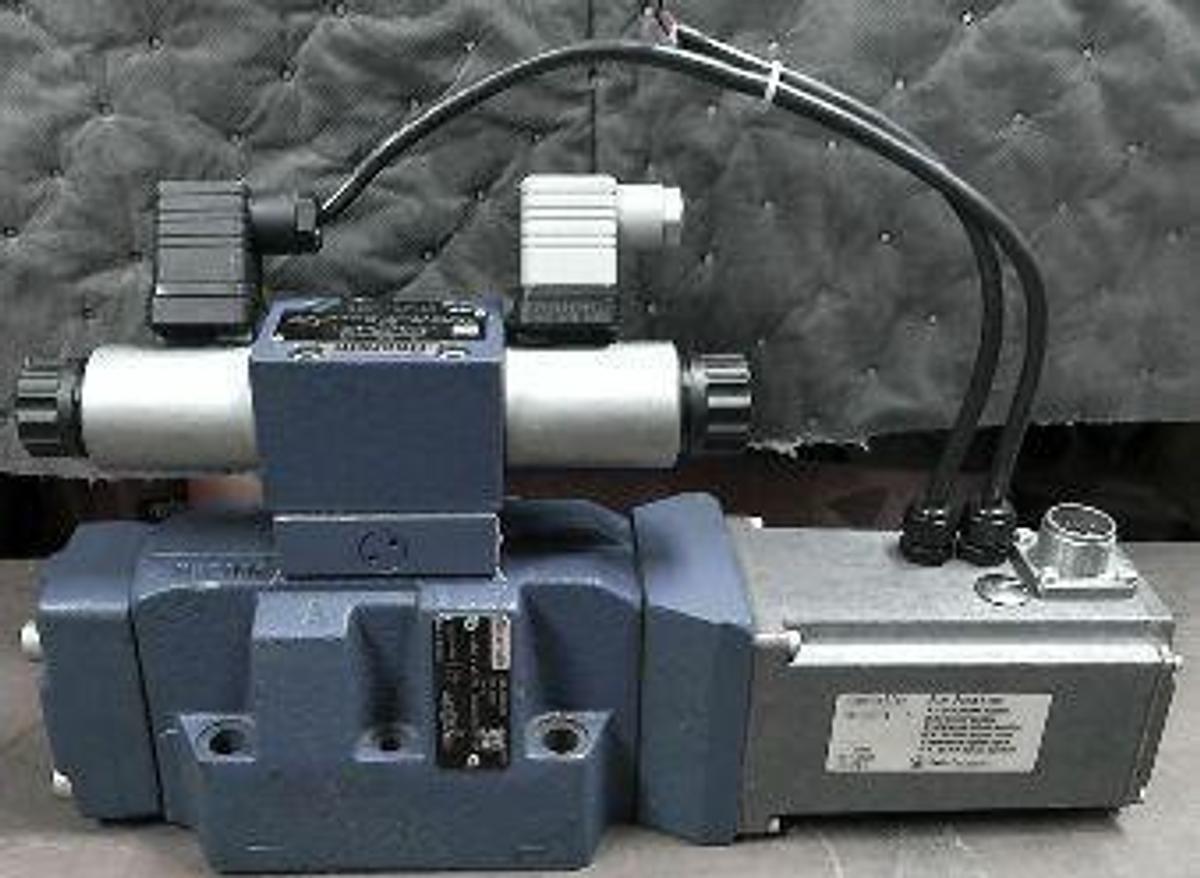

REXROTH MNR: R900972654

4WRAP 6 W7-04-30=G24K4/M=00 125769164 191 356839 A 05127951051 4WRKE 16 W8-125L-35/6EG24EK31/F103M FD: 81710 125769984 4L 48 R900767921 E 0901S141037 B OV POWER SUPPLY C REFERENCE ACTUAL POSITION D 4…20 MA SIGNAL INPUT E REFERENCE SIGNAL INPUT F 4…20 MA ACTUAL POSITION R900607679. THE REXROTH MNR (MATERIAL NUMBER) R900972654 CORRESPONDS TO A HIGH-PRECISION 4WRAP 6 PROPORTIONAL DIRECTIONAL SPOOL VALVE CONTROLLER. IT FUNCTIONS AS A DIRECT-OPERATED HIGH-PERFORMANCE SERVO/PROPORTIONAL VALVE DESIGNED FOR SOPHISTICATED CLOSED-LOOP CONTROL OF POSITION FORCE VELOCITY AND FLUID FLOW IN DEMANDING INDUSTRIAL HYDRAULIC AUTOMATION NETWORKS THE SECOND MARKING FD: 76020 IS REXROTH'S MANUFACTURING DATE CODE (FACTORY DATE) INDICATING THAT THIS SPECIFIC HARDWARE UNIT WAS BUILT IN FEBRUARY 1996. MODEL CODING BREAKDOWN: ON THE COMPONENT DATA PLATE YOU WILL TYPICALLY FIND THE FULL MODEL CODE FORMAT: 4WRAP 6 W7-04-3X=G24K4/M=00. 4W: 4-WAY FLUID PORT CONFIGURATION (P A B T). R: PROPORTIONAL RESPONSE CHARACTERISTIC. A: HIGH-PERFORMANCE FAST-RESPONSE DIRECT CONTROL DESIGN. P: SPOOL POSITION SENSING CAPABILITY .6: SUBPLATE SIZE (SIZE 6 / CETOP 3 MOUNTING FOOTPRINT). W7-04: SPECIFIC LINEAR FLOW CHARACTERISTIC CURVE AND SYMMETRICAL PORTING. 3X: 30 TO 39 COMPONENT DESIGN SERIES (RETAINS IDENTICAL INSTALLATION BOUNDARY DIMENSIONS).G24: STANDARD 24V DC SOLENOID EXCITATION COILS. K4: BUILT-IN HEAVY-DUTY ELECTRICAL PLUG-IN CONNECTOR TERMINAL INTERFACE (DIN STANDARD). M: MANUAL OVERRIDE PIN ASSEMBLY. PILOT VALVE (4WRAP 6): REFERS TO A DIRECT-OPERATED PROPORTIONAL SERVO-VALVE MAIN STAGE VALVE (4WRKE 16) DEFINES A PILOT-OPERATED 4-WAY PROPORTIONAL DIRECTIONAL CONTROL VALVE.
