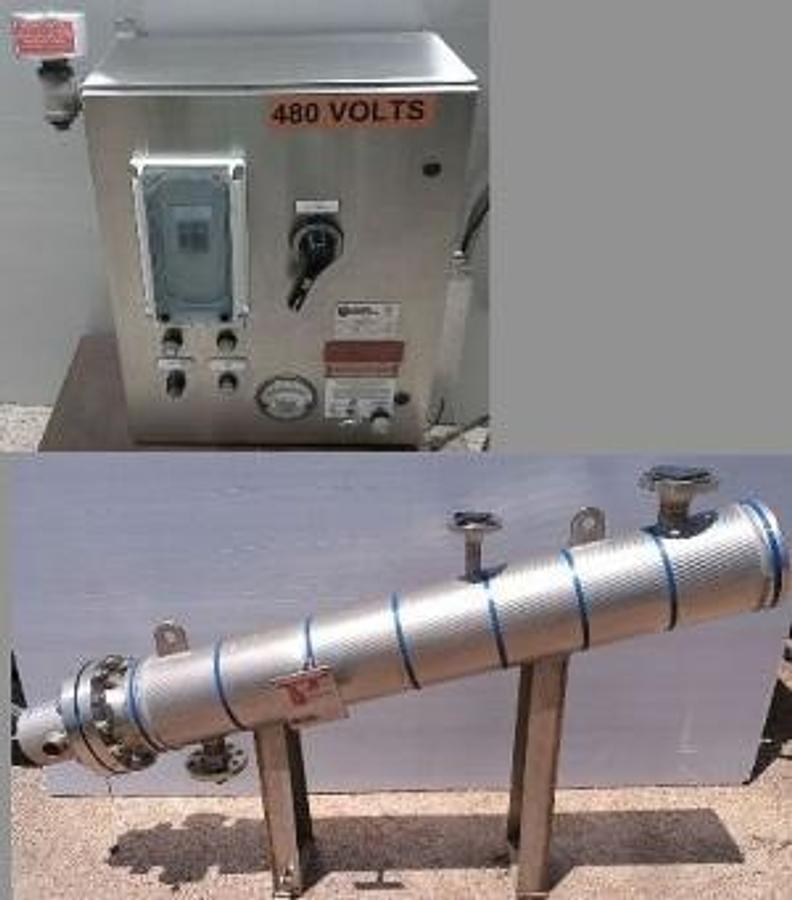

GAUMER PROCESS CONTROL HEATER WITH CONTROL PANELS: HEATER = CERTIFIED BY GAUMER PROCESS TAG NO: E-7078

GAUMER PROCESS CONTROL HEATER WITH CONTROL PANELS: HEATER = CERTIFIED BY GAUMER PROCESS TAG NO: E-7078 MDMT -110 DEG F @ MAWP 465 PSIG GRAUMER HEATERS CONTROL SYSTEMS ICC / I: IMMERSION/CIRCULATION ELEMENT BUNDLE. SPECIFIES AN INDUSTRIAL FORCED-FLOW INLINE VESSEL DESIGN EQUIPPED WITH INTERNAL RESISTIVE HEATING BUNDLES. 3S / 3: 3-INCH NOMINALLY SIZED FLANGE OR PIPE VESSEL INLET/OUTLET CONNECTIONS. 6F: 600 LB. FLANGE RATING. DESIGNATES AN ASME HIGH-PRESSURE CARBON STEEL OR STAINLESS-STEEL STRUCTURAL CONNECTION FLANGE CAPABLE OF SEALING HIGHLY PRESSURIZED PROCESS SYSTEMS.12: 12 HEATING ELEMENTS OR AN ACTIVE IMMERSION LENGTH MARKER (E.G. 12 INCHES/DECIMETERS) DETERMINING THE SPATIAL VOLUME OF THE HEATER VESSEL. N4: NEMA 4 TERMINAL ENCLOSURE. LIQUID-TIGHT DUST-PROOF MOISTURE PROTECTION CASING DESIGNED SAFELY FOR STANDARD OUTDOOR OR HEAVY WASH-DOWN PLANT PROCESSING AREAS. 4G: 480 VOLT GRID CONFIGURATION / GROUNDED SYSTEM MATCHING INDUSTRIAL THREE-PHASE ENERGY SYSTEMS. 4ER: EXPLOSION-RESISTANT (CLASS I DIV 1 / DIV 2) TERMINAL BOX OPTION. INCORPORATES SPECIALIZED STANDOFF HOUSINGS OR CERTIFIED FLAME-PROOF SEALS TO SAFELY OPERATE AROUND COMBUSTIBLE VAPORS.KX: TYPE K THERMOCOUPLE SENSORS. DENOTES THAT HIGH-PRECISION TYPE K INTERNAL PROCESS INSTRUMENTATION SENSORS ARE EMBEDDED DIRECTLY INTO THE ELEMENT SHEATH AND VESSEL DISCHARGE PORT TO TRACK OVERTEMPERATURE LIMITS AND FEEDBACK LOOPS VOLTS: 480 CLI ZONE 1 GR IBB+H2 CL I DIV 1 GR B,C,D 160 DEG C 75 MM OF ENCLOSURE CAT IGC3S6F12N44G4ERKX 480 VOLT 3 PHASE 36 KW C21685-03 B CONTROL PANEL = GAUMER PROCESS CONTROL PANEL FOR HAZARDOUS LOCATION DIV 2 GROUP A,B,C,D MODEL 3003-LPS-CI-TYPE Y OR Z 90 CUBIC FEET/2.5 CUBIC METER MAXIMUM ENCLOSURE VOLUME DIV 2 GROUPS A,B,C & D ZONE 2 GROUP IIC TO NONHAZARDOUS DIVISION 1 GROUPS A,B,C & D/ ZONE 1 GROUP IIC TO DIVISION 2/ ZONE 2 INSIDE CONTROLLER: 1) SQUARE D NO: 8501KUDR12V53 120 V 50/60 HZ 1) ABSOLUTE PROCESS INSTRUMENTS INC L1144991G3 2013 UL LLC 4) BUSS SAMI-17 BUSSMAN SAMI REPLACES M60030-1P0 30 AMP 600 VOLT QUICK CON 20 AMP 65 AMP RES 600 VOLT MAX 10 HP: 3/10/-/-,30 HP: -/15/30/30 1) DWYER INST INC PEPPERL+FUCHS ENCLOSURE PRESSURE GAUGE 2) GAUMER PROCESS HEATERS SYSTEMS CONTROLS SSRL48D100 4-32V 1) PARTLOW CONTROLLER SERIAL NO: 768260010008. GAUMER PROCESS CONTROL PANEL CONFIGURED TO REGULATE ELECTRIC PROCESS HEATERS. INSTEAD OF BEING THE HEATER ITSELF THIS PART NUMBER REPRESENTS THE SILICON CONTROLLED RECTIFIER (SCR) POWER CONTROL ENCLOSURE THAT MANAGES THE HEATER'S ELECTRICAL LOAD. .
