NORTH PUMP

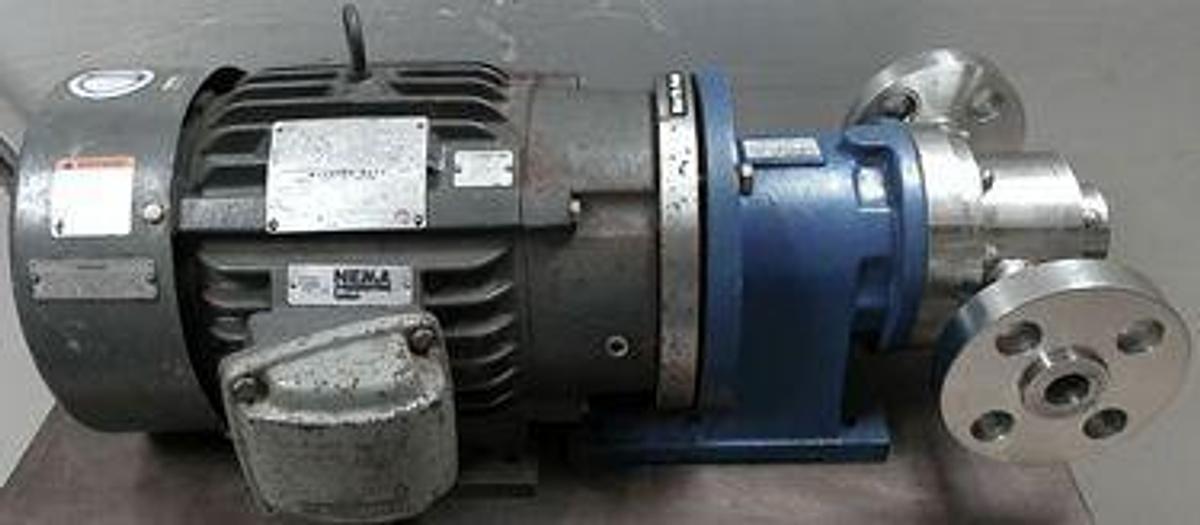

NORTH PUMP 1" INLET 1" OUTLET F 52124 ELECTRIC MOTOR FOR HAZARDOUS LOCATIONS CLASS I DIVISION 1 ID# K10-05671229-100-M S41 01 TORQUE CT/ PWM 14.8 SF 1.0 INV. TYPE EMERSON MOTOR CO US MOTORS MADE IN MEXICO. MPA SERIES PUMPS ARE ROTARY POSITIVE DISPLACEMENT PUMPS MAGNETICALLY DRIVEN AND MADE OF STAINLESS STEEL AISI316TI. CHARACTERISTIC WISE ROTARY SLIDING VANE PUMPS GENERATE LOW VOLUMETRIC FLOWS WITH MIDDLE TO HIGH DISCHARGE PRESSURES AND ALMOST NO PULSATION. THE OPERATING PRINCIPLE IS BASED ON RADIAL SLIDING VANES WHICH ARE ROTATING IN AN ECCENTRIC STATOR. THE PUMP HOUSINGS ARE MACHINED FROM SOLID BLOCK MATERIALS. THE MOTOR POWER IS TRANSMITTED BY A FORCE-LOCKED CONNECTION TO THE HYDRAULIC PART OF THE PUMPS BY STRONG NEODYNIUM-PERMANENT-MAGNETS. THE PUMP IS ABLE TO WORK WITHOUT ANY SHAFT SEALS WHICH GUARANTEES A SAVE AND MAINTENANCE-FREE TRANSFER OF THE LIQUID WITHOUT ANY LEAKAGE OF CORROSIVE TOXIC AND EXPLOSIVE FLUIDS.
