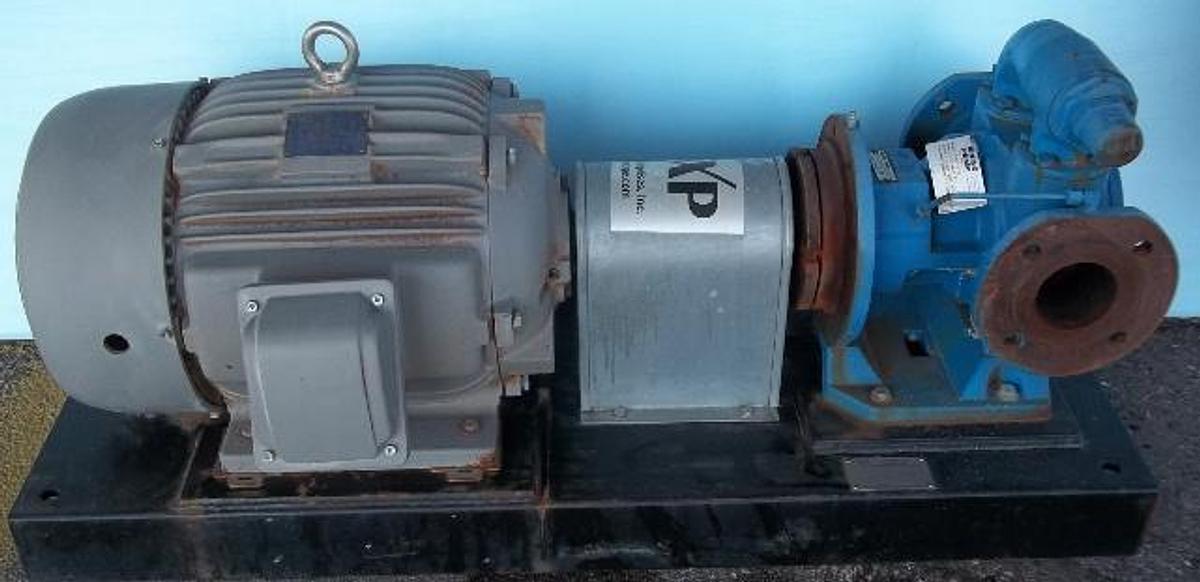

VIKING PUMP A UNIT OF IDEX CORPORATION SKID MOUNTED MOTOR DRIVEN POSITIVE DISPLACEMENT PUMP
VIKING PUMP A UNIT OF IDEX CORPORATION SKID MOUNTED MOTOR DRIVEN POSITIVE DISPLACEMENT PUMP
Location:Texas City, TX
Available quantity:1
or
Call 409-761-0189
Description
VIKING PUMP A UNIT OF IDEX CORPORATION SKID MOUNTED MOTOR DRIVEN POSITIVE DISPLACEMENT PUMP
4" SUCTION 4" DISCHARGE
MOTOR = TECH WESTINGHOUSE MOTOR COMPANY ROUND ROCK
TEXAS
MAX-E1 HIGH EFFICIENCY SEVERE DUTY
CT HZ
CP HZ
S.F.1.0 (60HZ BASE)
USABLE ON 208V NETWORK AT 31.5 AMPS
EE CCOO2A
SA 171832
RU E 89368
MADE IN TAIWAN 31045M366M3E5. NOMINAL PUMP CAPACITY: PORT SIZE: 80
MAXIMUM HYDROSTATIC PRESSURE: PSI: 300
BAR: 32. MAXIMUM RECOMMENDED DISCHARGE PRESSURE 25 CST LIQUID: PSI: 175
150 DEG. C.
Specifications
| Model | KKE4176 |
| Condition | Used |
| UNIT SERIAL NO | 6325850 |
| SEAL KIT NO | N3-464-SEAL-K131 |
| HP/KW | 10/7.5 |
| HZ | 60/50 |
| VOLTS | 230/460/190/380 |
| AMPS | 28.5/14.3/31.2/15.6 |
| R.P.M. | 885/720 |
| CODE | H |
| S.F. | 1.15/1.0 |
| NOM. EFF. | 89.5/ 87.5 |
| MIN. EFF | 87.5/ 85.5 |
| DESIGN | B |
| SERIAL NO | RZ6144526005 |
| PWN/VDF DUTY | VT HZ |
| TYPE | AEHE UW |
| CAT. NO | E0108 |
| FRAME | 284T |
| ENCT | TEFC |
| RATING | CONT. |
| INS. | F |
| PHASE | 3 |
| AMB. | 40 DEG. C |
| WEIGHT | 403 LBS. |
| DE BRG | 6311ZZ |
| ODE BRG | 6310ZZ |
| GAL/REV | 0.13 |
| LITERS REV | .046 |
| GPM | 170 |
| M3/HR | 38.4 |
| RPM | 1450 |
| BAR | 12 |
| MAXIMUM TEMPERATURE | 300 DEG. F |
