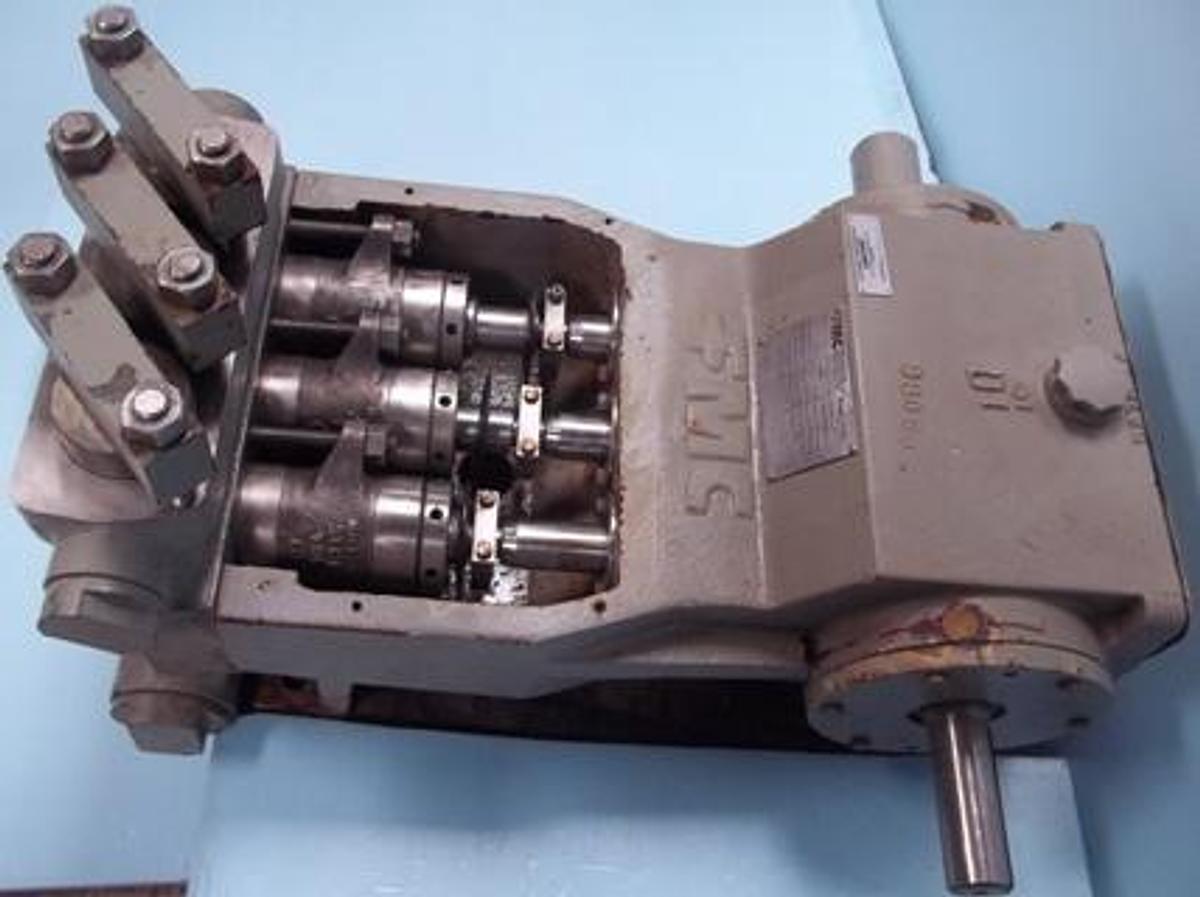

FMC CORPORATION FLUID CONTROL DIVISION BEAN PUMP MODEL NO.: M0816CN PART NO.: 3268125

FMC CORPORATION FLUID CONTROL DIVISION BEAN PUMP MODEL NO.: M0816CN PART NO.: 3268125 S/N: 081898B4 MAXIMUM CONDITIONS POWER: ---- KW 30HP DISCH. PRESS. --- KPA 1200 PSI SUC. PRESS. --- KPA --- PSI FLOW RATE 162 LPM 40.5 GPM SPEED 517 CRANK RPM TEMP. --- DEG. C. --- DEG. F. 6 QUARTS 30 W (ISO/VG 160) OIL REQD. RATED CONDITIONS: POWER: --- KW --- HP DISCH. PRESS. --- KPA --- PSI SUC. PRESS --- KPA --- PSI FLOW RATE --- LPM --- GPM SPEED --- CRANK RPM TEMP. --- DEG. C. --- DEG. F. TAG NO.: ----- BEARING NOS.: ----- 01 D1 980 95 964 14345 CW12MW FMC 3264 16 H FMC 3268126 A106380 05 3013 042213A 10047 5272862 FMC A55071 3268150 526369 9283727 32 798 WITH 3' INLET WITH 2' OUTLET WITH 1 ¾" DRIVE SHAFT. FMC 3268125 RECIPROCATING PUMP A POSITIVE DISPLACEMENT DEVICE WHICH UTILIZES THE RECIPROCATING MOTION OF ONE OR MORE PISTONS PLUNGERS OR DIAPHRAGMS WITHIN A COMPLETE OR PARTIAL ENCLOSURE AS A MEANS OF TRANSFERRING A LIQUID FROM ONE PLACE TO ANOTHER. IT IS DESIGNED TO BE DRIVEN MANUALLY OR BY A PRIME MOVER WHICH IS NOT AN INTEGRAL PART OF THE PUMP. NSN: 4320-01-422-9401 A POSITIVE DISPLACEMENT DEVICE WHICH UTILIZES THE RECIPROCATING MOTION OF ONE OR MORE PISTONS PLUNGERS OR DIAPHRAGMS WITHIN A COMPLETE OR PARTIAL ENCLOSURE AS A MEANS OF TRANSFERRING A LIQUID FROM ONE PLACE TO ANOTHER. IT IS DESIGNED TO BE DRIVEN MANUALLY OR BY A PRIME MOVER WHICH IS NOT AN INTEGRAL PART OF THE PUMP. MAXIMUM DISCHARGE FLOW RATE: 40.0 GALLONS PER MINUTE SALT III END ITEM IDENTIFICATION: PUMP UNIT RECIPROCATING; FMC CORP; W/S 170 FT. PATROL COSTAL(PC-1)CLASS SHIPS.
