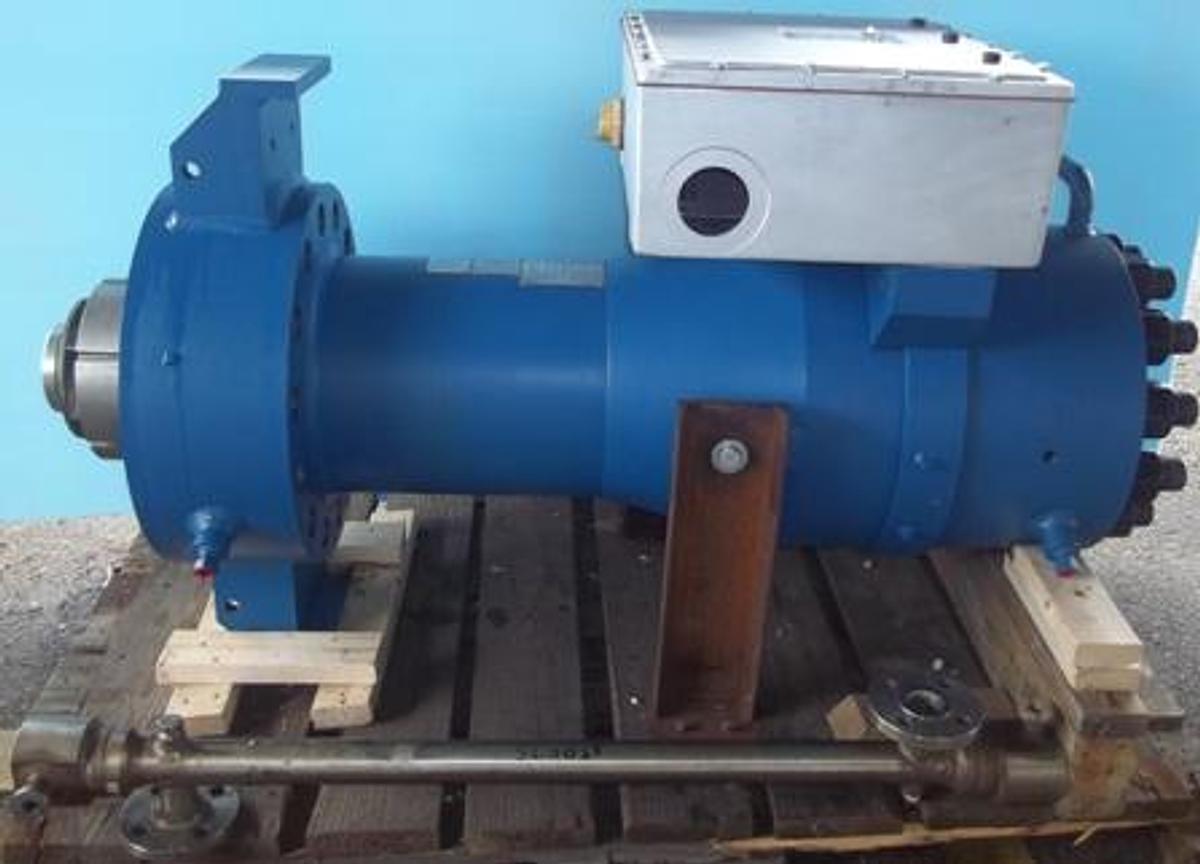

HAYWARD TYLER

HAYWARD TYLER INC. BOILER WATER CIRCULATING PUMP HIGH TEMPERATURE CANNED PUMP DESIGNATION: 5X5X9/75 DSU S/N: UD55960489-02 IMP DIA.: (IN) 8.75 OWNERS ID NO.: 2976EN5007-7011-08 P.O. NO.: LGHC 1962W LAPORTE YEAR BUILT: 1997 FLOW (US GPM): 850 HEAD (FT): 235 SPEED (RPM): 3520 MAX. WORKING PRESS: 6000 PSI AT 300 DEG. F. HYDROSTATIC TEST PRESSURE: (PSI) 9000 CA228-2 CA359 THIS MODEL USES A THERMAL BARRIER BETWEEN THE PUMP CASE AND MOTOR TO THERMALLY ISOLATE THE MOTOR. DESIGNED FOR ZERO-LEAKAGE OPERATION IN APPLICATIONS THAT DEMAND ROBUST AND RELIABLE PERFORMANCE. HIGH TEMPERATURE PUMP INCLUDES WATER COOLED HEAT EXCHANGER NATIONAL BOARD NO.: 1795 CERTIFIED BY ENERQUIP INC. M.A.W.P. SHELL SIDE: 200 PSIG AT 300 DEG. F. TUBE SIDE 6000 PSIG AT 300 DEG. F. MIN. DESIGN METAL TEMP SHELL SIDE: -20 DEG. F. AT 200 PSIG TUBE SIDE: -20 DEG. F. AT 6000 PSIG S/N: 2899 BUILT: 1997 WITH 2. FLANGE 9550 MFF 1 ½" 300 B16 SA182 P304/F304347847 ITALY COOLING INLET ¾" COOLING OUTLET ¾" WITH HAYWARD TYLER INC. DSU AC MOTOR S/N: UD55960489-02 MODEL NO.: V FRAME ASSEMBLY CODE: N/A HP: 75 F.L. AMPS: 108 S.F.: 1.00 VOLTS: 460 PHASE: 3 HERTZ: 60 RPM: 3520 TIME RATING: CONT. TYPE SERIES: "A" HERMETIC LIQUID COOLED TEMP RISE: 40 DEG. C. KVA CODE: H PRESS: 6000 INSULATION CLASS: F OVER TEMP PROT.: 3 WITH ADALET ENCLOSURE CAT. NO.: WIF202408 IMPORTANT FOR PROPER PUMP ROTATION CONNECT LEADS T1 T2 T3 TO LINES LI L2 L3 CORRESPONDING TO PHASE SEQUENCE A B C PARTS AND SERVICE FOR THIS PUMP AVAILABLE FROM HAYWARD TYLER INC. DATE SERVICED: 11/27/2019 CONT. NO.: SC-ST0075 THIS BOILER WATER CIRCULATING PUMP HAS BEEN REBUILT WITH CARE BY THE PROFESSIONALS AT HAYWARD TYLER AT AMBIENT TEMPERATURE THIS UNIT HAS NOT BEEN PREPARED FOR LONG TERM STORAGE. IF THIS UNIT IS TO BE STORED FOR LONGER THAN 2 WEEKS AND IS NOT PREPARED FOR LONG TERM STORAGE OR IF THERE ARE ANY QUESTIONS CONCERNING INSTALLATION OR OPERATION CONTACT HAYWARD TYLER INC. CUSTOMER SERVICE DEPARTMENT 1-802-655-4444. NOTE: PUMP AND HEAT EXCHANGER ONLY DOES NOT INCLUDE PUMP HEAD.
