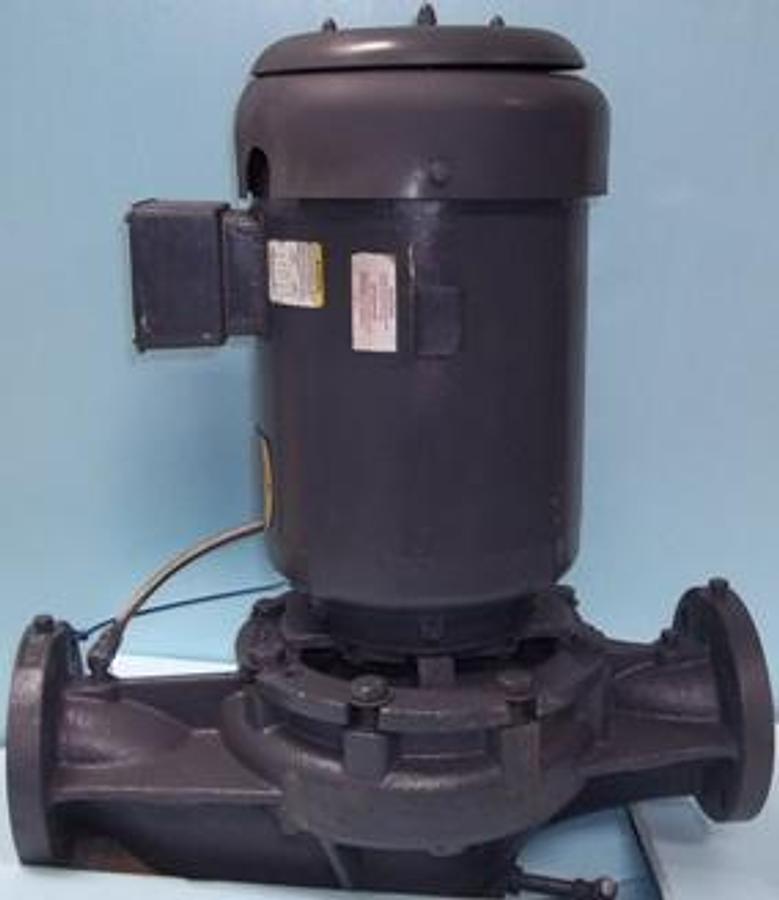

ARMSTRONG PUMPS INC. VERTICAL INLINE PUMP

ARMSTRONG PUMPS INC. VERTICAL INLINE PUMP CLOSED COUPLED 3X3X8 MODEL NO.: 4380 CONSTRUCTION: BF = BRONZE FITTED (CAST IRON VOLUTE BRONZE OR NORYL IMPELLER ANSI 125 FLANGE CONNECTIONS FOR 175 PSI MAXIMUM WORKING PRESSURE) 50 FT HEAD S/N: C 321858 MOTOR: 7.5 HP 1800 RPM FLANGE 426749 427051 12082A 3" INLET 3" OUTLET INCLUDES BALDOR RELIANCE INDUSTRIAL MOTOR PWM TYPE SER. F. 1.15 NEMA NOM. EFF. 89.5 % RATING: 40 DEG. C. ,CONT. CC: 0101A USABLE AT 208V A BEARINGS: DE: 6307 ODE: 6206 ENCL: TEFC S/N: F1210191170 1.0SF @ 55 DEG. C. AMB. NP1256L APPLICATIONS: HVAC-SYSTEM PUMPING; LIGHT INDUSTRIAL/ PROCESS PUMPING (WATER OR GLYCOL BASED) DESCRIPTION: THE ARMSTRONG 4380 PIPE-MOUNTED PUMPS ARE DESIGNED FOR SPACE-SAVING INSTALLATION AND LONG SERVICE LIFE SILICON SINTERED CARBIDE MECHANICAL SEAL CAST IRON OR BRONZE IMPELLER
