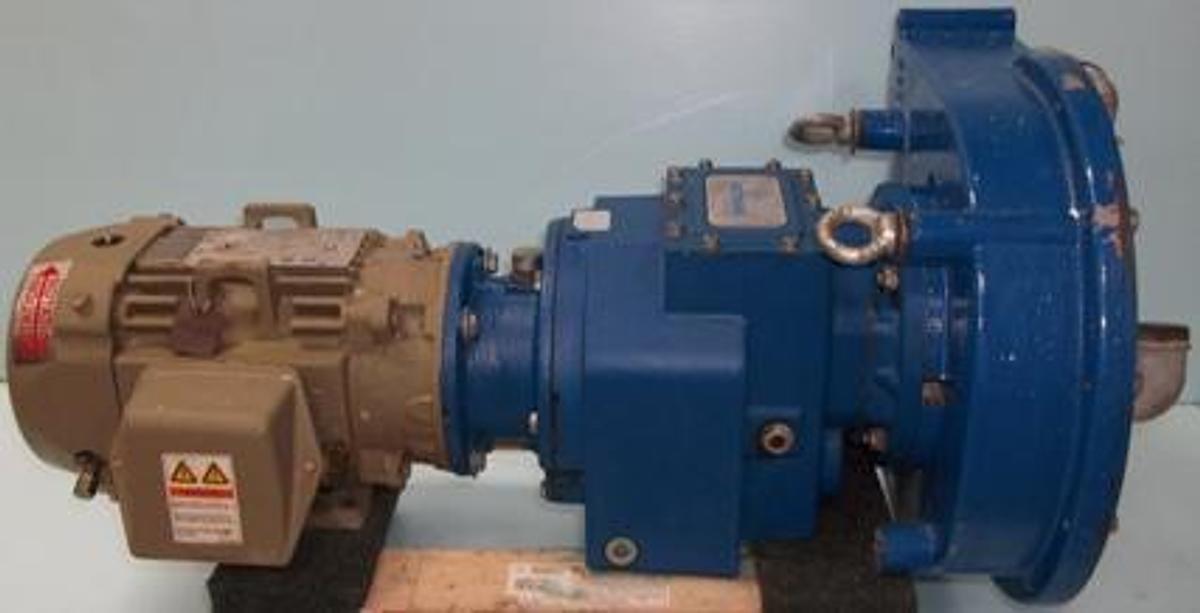

NEPTUNE PERISTALTIC HOSE PUMP MODEL: ABN25-R3

1" INLET 1" OUTLET MOTOVARIO GEAR BOX GE MOTOR EX NA IIC GC T3 CLASS I ZONE 2 AEX NA IIC CSA.09.2216219 CLASS I DIV 2 GROUP A,B,C,D -25 TAMB 40 DEG C SA C US R CE BRG 3OBCOZXP3 ODE BRG 25BCO2XP3 MAX EXPOSED INTERNAL AND EXTERNAL SURFACE TEMPERATURES UNDER USUAL SERVICE CONDITIONS AT 1.00 SF DO NOT EXCEED 200 C. NP249A5573AA HP 2 VOLTS 460 AMPS 2.8 RPM 1735 FRAME 145TC TYPE KS PHASE 3 NEMA ENCL TEFC IP 56 HZ 60 NEMA DESIGN B TIME RATING CONT. INS CLASS H CODE L MAX KVAR 1.0 RF 77.5 WT 50 LB 40 DEG C MAX AMB @ 1.15 SF ODE BEARING 6205ZC3 DE BEARING 6206ZC3 MIN SUPPLY WIRES 75 C VIB 0.04 BRG LUBE MOBIL POLYREX EM NEMA NEMA NOM EFF 86.5% MIN GEAR EFF 84.0% IEEE-STD-841-2009 EXTRA SUPER DUTY AC MOTOR IEEE 45 EE CCOO9A SA ENERGY VERIFIED 161841 RU E47088 X$D ULTRA 841 MADE IN MEXICO. BOTH UNITS NEED NEW PLEXIGLAS SIGHT GLASS ON PUMP. MOTOR SERIAL NO.EHFT127S002. PUMPS FEATURE A SEAL-LESS DESIGN THAT ELIMINATES LEAKS AND PRODUCT CONTAMINATION AND HAVE THE ABILITY TO RUN DRY CONTINUOUSLY WITHOUT ADVERSELY AFFECTING THE PUMP'S PERFORMANCE. FEATURES & BENEFITS: EXCELLENT SELF-PRIMING CAPABLE OF RUNNING IN FORWARD OR REVERSE SOLID CONSTRUCTION AND ADVANCED DESIGN RESULTS IN REDUCED MAINTENANCE AND REPAIRS HANDLES YOUR TOUGHEST PUMPING NEEDS FROM ABRASIVE AND AGGRESSIVE FLUIDS TO SHEER SENSITIVE AND VISCOUS MATERIALS ABN25 HOSE I.D: 25 MM (1") FLOW RATES: 0.017 - 2.33 M3 /HR (0.73 - 10.27 GPM) MAX. DISCHARGE PRESSURE: 15 BAR (217 PSI) CONNECTION TYPE: 25 MM (1") ANSI CLASS 150 FLANGE WEIGHT: 56 KG (110 LBS).
