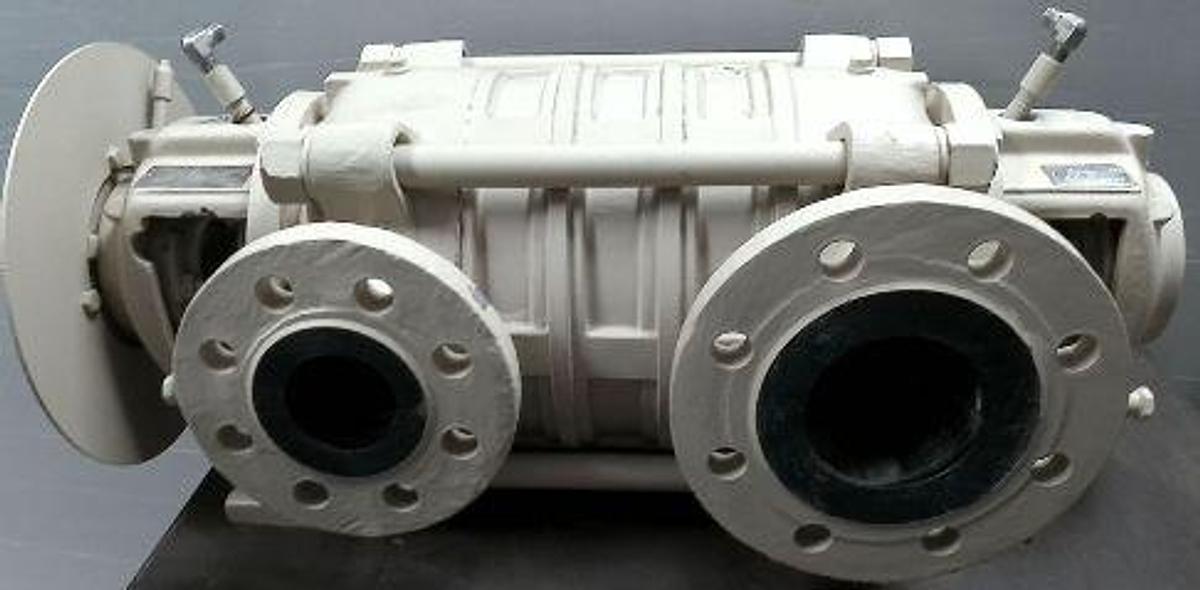

GOULDS MULTI STAGE 316 STAINLESS STEEL PUMP NO: N205H355

3355 2.5 X 4-8A 4 STAGE 1200 228 3550 800 690 316 SS 175 7.874 7.874 MECHANICAL SEAL US 2015 6307 C3 5307 A GREASE L. GOULDS MODEL 3355 IS A MULTISTAGE RING SECTION PUMP DESIGNED FOR HIGH-PRESSURE SERVICES INCLUDING: BOILER FEED REVERSE OSMOSIS SHOWER SERVICE PRESSURE BOOSTING PLUS MUCH MORE. ITS MODULAR DESIGN AND MULTIPLE CONFIGURATIONS MAKE IT IDEAL FOR YOUR SYSTEM. BASED ON THE GOULDS 3355 SERIES MULTISTAGE RING SECTION PUMP SPECIFICATIONS HERE IS THE BREAKDOWN OF THE NUMBERS FROM NAMEPLATE: N205H355: THIS IS LIKELY THE SERIAL NUMBER 355: THE MODEL NUMBER (GOULDS 3355 MULTI-STAGE RING SECTION PUMP). 2.5 X 4-8A: THE PUMP SIZE: 2.5" DISCHARGE 4" SUCTION AND 8-INCH NOMINAL MAX IMPELLER SIZE.4 STAGE: THE PUMP HAS FOUR IMPELLERS/STAGES TO INCREASE PRESSURE. SPECIFIC NUMERIC IDENTIFIERS: 1200: LIKELY REPRESENTS THE RATED CAPACITY IN GALLONS PER MINUTE (GPM) AT THE DUTY POINT (THE 3355 SERIES HANDLES UP TO 1500 GPM). 228: LIKELY REPRESENTS THE TOTAL HEAD (TDH) IN FEET THAT THE PUMP IS DESIGNED FOR. 3550: THE RATED SPEED IN REVOLUTIONS PER MINUTE (RPM) FOR 60 HZ OPERATION. 800: REFERS TO THE MAXIMUM OPERATING PRESSURE IN PSIG (UP TO 800 PSIG). 690: LIKELY REFERS TO THE TOTAL HEAD IN FEET (IF HIGHER THAN 228) OR A SPECIFIC HIGH-EFFICIENCY POINT BUT 800 IS THE PRESSURE RATING. 316SS: STANDS FOR 316 STAINLESS STEEL CONSTRUCTION. 175: COULD BE THE REQUIRED MOTOR HORSEPOWER OR MORE LIKELY A MANUFACTURER REFERENCE NUMBER FOR THE SPECIFIC IMPELLER/CASING FIT. 7.874: LIKELY THE EXACT IMPELLER DIAMETER IN INCHES AFTER TRIMMING (8A SIGNIFIES THE LARGEST SIZE IN THE 8" RANGE).
