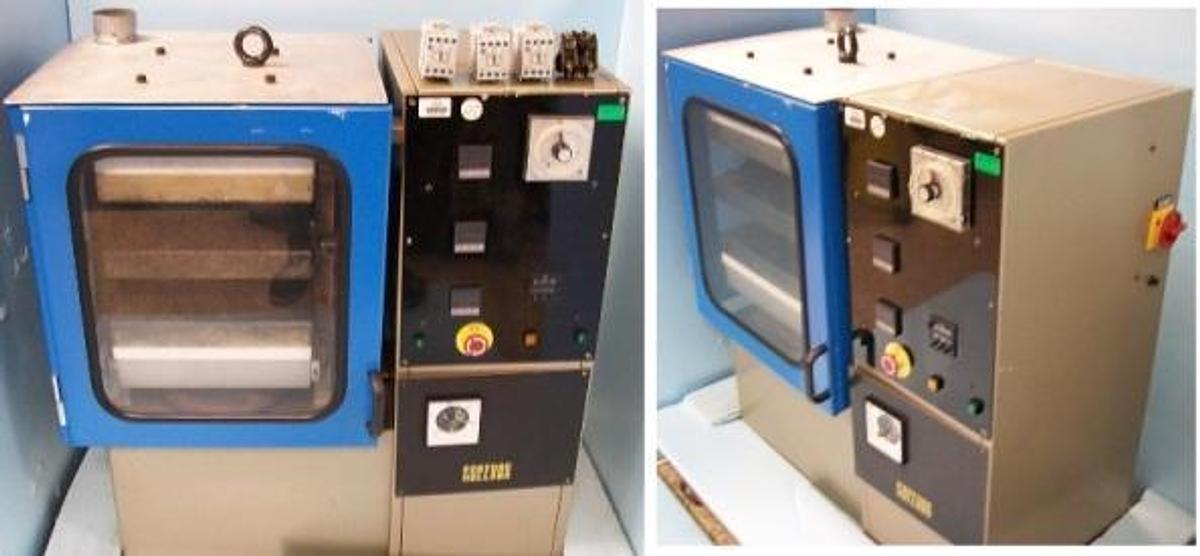

FONTUNE / FONTIJNE HOLLAND MODEL: TP400
FONTUNE / FONTIJNE HOLLAND MODEL: TP400
Location:Texas City, TX
Available quantity:1
or
Call 409-761-0189
Description
CURING PRESS
DUAL HEATED PLATEN
AUTOMATIC TEMPERATURE / PRESSURE CONTROL
100 % SAFETY SHIELDED. FONTIJNE ORDER NO. 000.86.250
15 KW
MAX. TEMP: 300 DEG. C. CYLINDER DIA.: 160 MM
OUTPUT-I.P. 15 DM3 / MIN
HP 0.46 DM3 / MIN. MAINS SUPPLY VOLTAGE: 3X380 V+N+ TOTAL POWER CONSUMPTION: 10.5 KVA
MASS WEIGHT 515 KG. (1135 LBS). INCLUDES 3) ALLEN BRADLEY CONTACTORS
CAT. NO: 100-LOG*10 AND 1) FURNAS SERIES B CAT. NO: 41NB20AF DEFINITE PURPOSE CONTROLLER.
Specifications
| Model | TP400 |
| Condition | Used |
| Serial Number | 86.250-4.89/ TPB242 |
| FONTUNE / FONTIJNE HOLLAND MODEL | TP400 |
| YEAR OF MANUFACTURE | 1989 |
| PLATEN SIZE | 320 X 320 MM |
| DAYLIGHT | 75 175 MM |
| ELECTRIC LOAD PER PLATEN | 3 |
| STROKE | 200 MM |
| HYDRAULIC PRESSURE | 200 BAR |
| MAX PRESS FORCE | 400 KN |
| (40 TON) MOTOR PUMP RATING | 0.55 KW |
