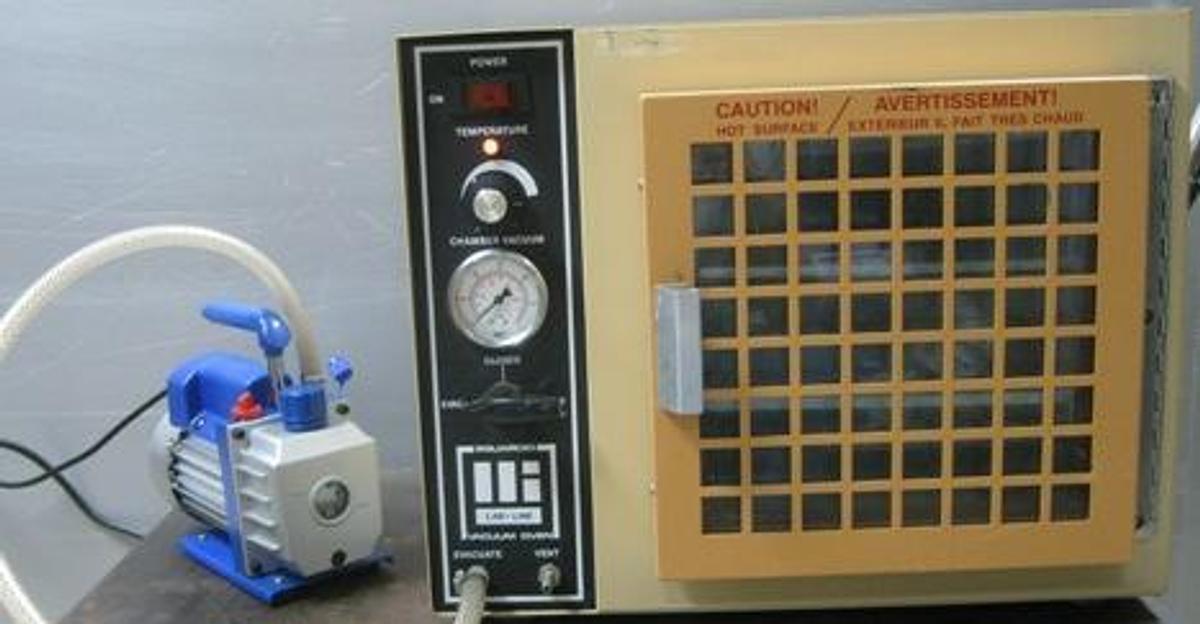

LAB-LINE VACUUM OVEN

LAB-LINE VACUUM OVEN I.D. 10 X 10" X 12" OVERALL DIMENSIONS: 19-7/8"W X 16"D X 16¼"H INCLUDES: A ZENY VACUUM PUMP VACUUM EMBEDDING PLATING AND ELECTRONIC COMPONENT PROCESSING. NON-CORROSIVE NONFLAMMABLE GASES SUCH AS NITROGEN AND CARBON DIOXIDE CAN BE USED IN THE OVEN. ALL CONTROLS AND CONNECTIONS (EXCEPT ELECTRICAL POWER) ARE LOCATED ON THE FRONT VERTICAL PANEL-THESE INCLUDE LIGHTED POWER SWITCH VACUUM GAUGE TEMPERATURE CONTROL VACUUM CONTROL VALVE AND NICKEL-PLATED HOSE CONNECTORS. UNIFORM RADIANT WALL HEAT WITH NO INTERNALLY EXPOSED HEATERS OPTIMIZES CHAMBER SPACE. 3-INCHES (76 MM) OF GLASS WOOL INSULATION THROUGHOUT HELPS MAINTAIN TEMPERATURE UNIFORMITY EFFECTIVENESS. TEMPERATURE IS CONTROLLED EITHER BY A HYDRAULIC THE CHAMBER OF THE UNIT IS NOT DESIGNED FOR EXPOSURE TO CONCENTRATED SOLVENTS OILS CONCENTRATED ACIDS OR DILUTE SODIUM HYDROXIDE. VACUUM LEVELS ARE PRECISELY HELD BETWEEN 0 AND 30-INCHES OF MERCURY. THE SILICONE DOOR GASKET ASSURES A TIGHT SEAL AT ALL VACUUM LEVELS. A HIGH STRENGTH TEMPERED GLASS WINDOW ALLOWS FULL VIEW OF OVEN CONTENTS. TWO ALUMINUM SHELVES PROVIDE GOOD HEAT CONDUCTION TO SAMPLES. THE SHELF ASSEMBLY REMOVES FOR EASY CLEANING. NET WEIGHT: 83 LBS. .
