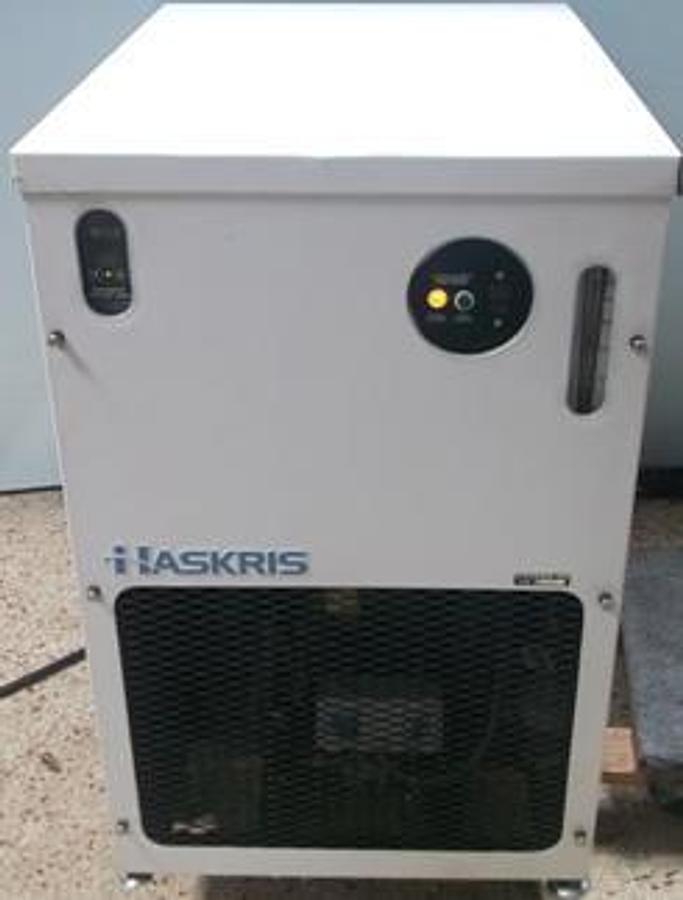

HASKRIS CO. CHILLER
HASKRIS CO. CHILLER
Location:Texas City, TX
Available quantity:1
or
Call 409-761-0189
Description
HASKRIS CO. CHILLER
1 HORSEPOWER
21 IN X 29 IN X 32 IN DIMENSIONS
350 LBS WEIGHT
1.7 GPM WATER PUMP CAPACITY/3 PUMP MOTOR HORSEPOWER
208/230V
1PH
60HZ ELECTRICAL
10.2 FLA
R12 REFRIGERANT
NOW R134A
1 COMPRESSOR HORSEPOWER
THE HASKRIS R100 IS A REFRIGERATED RECIRCULATING CHILLER. IT IS IDEAL FOR ANY COOLING APPLICATION WHERE AN OFF-THE-SHELF CHILLER IS NOT ADEQUATE. (THIS CHILLER POWERS ON AND PUMPS HOWEVER IT DOES NOT COOL MAY NEED FREON.)
Specifications
| Model | R100 |
| Condition | Used |
| SERIAL NO | H-A14413 |
| POWER | 208/230 VOLTS |
| CONDENSING UNIT H.P. | 1 |
| TOTAL F.L.A. | 9.9 AMPS |
| REFRIGERANT | R134A |
| REFRIGERANT CHARGE | 3.5 LBS |
| WATER PUMP MODEL | 104L215 |
| WATER STORAGE TANK CAPACITY | 6 GALLONS |
| WATER TEMP SETTINGS | 65-69 DEG. F |
| WATER PRESSURE BYPASS/RELIEF VALVE SETTING | 75 PSI |
| HIGH WATER TEMP THERMOSTAT SETTING | 80 DEG. F |
| SUPPLY AND RETURN CONNECTIONS | ½" HAND VALVES WITH ½" HOSE BARBS |
