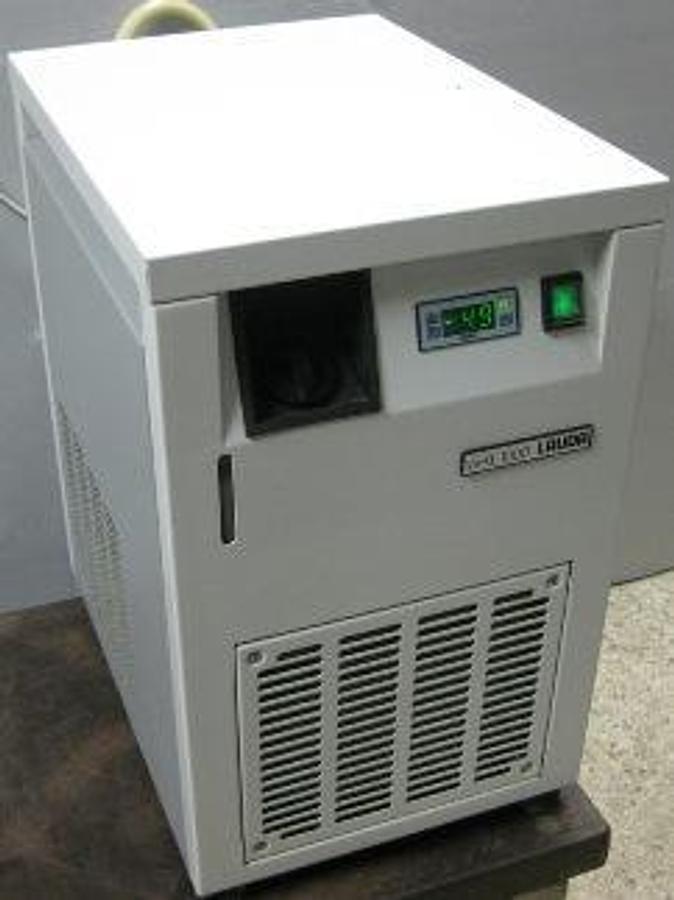

LAUDA WKL 1000 CIRCULATING CHILLER

LAUDA WKL 1000 CIRCULATING CHILLER POWER CONSUMPTION; 1,0 KW DIN 12876-1 *=HFC/HFKW KYOTO PROTOCOL. WORKING TEMP RANGE: -10 TO 40°C | FILLING VOLUME: 8 TO 12L | ELECTRICAL: 115 V /60 HZ | AIR-COOLED DESIGN MAX PUMP PRESSURE: 1.0 BAR | MAX PUMP FLOW: 30L/MIN | COOLING OUTPUT AT 20°C: 1.00 W | DIMENSIONS: 350 X 480 X 595 MM LED DISPLAY AND 3-BUTTON OPERATION. FEATURES A SUBMERSIBLE PUMP THAT ELIMINATES SEAL PROBLEMS AT THE PUMP SHAFT. LAUDA RECIRCULATING CHILLERS PROVIDE A CONSTANT TEMPERATURE AND ALLOW CONSTANT FLOW OF LAB RESEARCH AND PRODUCTION IRRESPECTIVE OF THE TIME OF YEAR AND PRESSURE FLUCTUATIONS DESIGNED FOR LABORATORY USE WITH ROTARY EVAPORATORS SOXHLET EXTRACTORS X-RAY UNITS REFRACTOMETERS AND DISTILLING APPARATUS. THIS AIR-COOLED WKL 1000 CIRCULATION CHILLER WITH A FILLING VOLUME OF 8 TO 12 L HAS A CLOSED COOLER CIRCUIT FOR CONTINUOUS NONSTOP WORK IN RESEARCH PRODUCTION AT TEMPERATURES FROM -10 TO 40 °C. IT IS USED WHERE OPERATING HEAT HAS TO BE DISCHARGED RELIABLY AND QUICKLY IN CHEMICAL PRODUCTION PROCESSES OR FROM TECHNICAL SYSTEMS IN HARSH CONSTANT USE ENVIRONMENTS. UNLIKE COOLING WITH TAP WATER THIS CHILLING CIRCULATOR PROVIDES A CONSTANT TEMPERATURE IRRESPECTIVE OF THE TIME OF YEAR AND PRESSURE FLUCTUATIONS. THE INDEPENDENT COOLING-WATER SYSTEM INSTEAD OF A CENTRAL COOLING-WATER SUPPLY AVOIDS THE LEAKAGE OF SUBSTANCES THAT ARE HAZARDOUS TO THE ENVIRONMENT. THE WATER SAVINGS ALSO PROTECTS THE ENVIRONMENT AND SIGNIFICANTLY REDUCES OPERATING COSTS. THE WKL 1000 HAS AN LED DISPLAY AND A 3-BUTTON OPERATION AND FEATURES A SUBMERSIBLE PUMP THAT ELIMINATES SEAL PROBLEMS AT THE PUMP SHAFT. STANDARD ACCESSORIES INCLUDE M16 X 1 PUMP CONNECTION THREADS NIPPLES AND SCREW CAPS. APPLICATIONS INCLUDE ROTARY EVAPORATORS AND SOXHLET SYSTEMS ANALYTICAL DEVICES SUCH AS ELECTRON MICROSCOPES X-RAY UNITS REFRACTOMETERS DISTILLING SYSTEMS X-RAY CONTROL SYSTEMS SUCH AS AT AIRPORTS AND SEMICONDUCTOR SYSTEMS CONTROL OF COOLING TRAPS SUCH AS IN THE DRYING OF GASSES AND CENTRAL COOLING WATER SUPPLIES FOR COMPLETE LABORATORIES TO REPLACE COOLING WITH TAP WATER. WORKING TEMPERATURE RANGE: -10 TO 40 °C. RESOLUTION OF SETTING: 0.1 TO 1.0 °C. CONTROL: COMPRESSOR ON/OFF. TEMPERATURE STABILITY: +/- 0.5 K. EFFECTIVE COOLING OUTPUT AT 20 °C: 1.0 KW. EFFECTIVE COOLING OUTPUT AT 0 °C: 0.51 KW. EFFECTIVE COOLING OUTPUT AT -10 °C: 0.24 KW. PUMP CONNECTION THREAD: M16 X 1. NIPPLE DIAMETER: 10 MM. MAXIMUM PUMP PRESSURE: 1.0 BAR. MAXIMUM PUMP FLOW: 30 L/MIN. FOR TUBING: ½ IN. FILLING VOLUME: 8 TO 12 L. DIMENSIONS: 350 X 480 X 595 MM. PRESSURE MEASUREMENT/PARAMETER: NO. PROTECTION LEVEL: IP32. NOISE LEVEL: 50 DB (A). ADDITIONAL FEATURE: LEVEL INDICATION. POWER SUPPLY: 115 V/60 HZ. WEIGHT: 46 KG. LOADING: 1.1 KW. LAUDA #: LWG 473.
