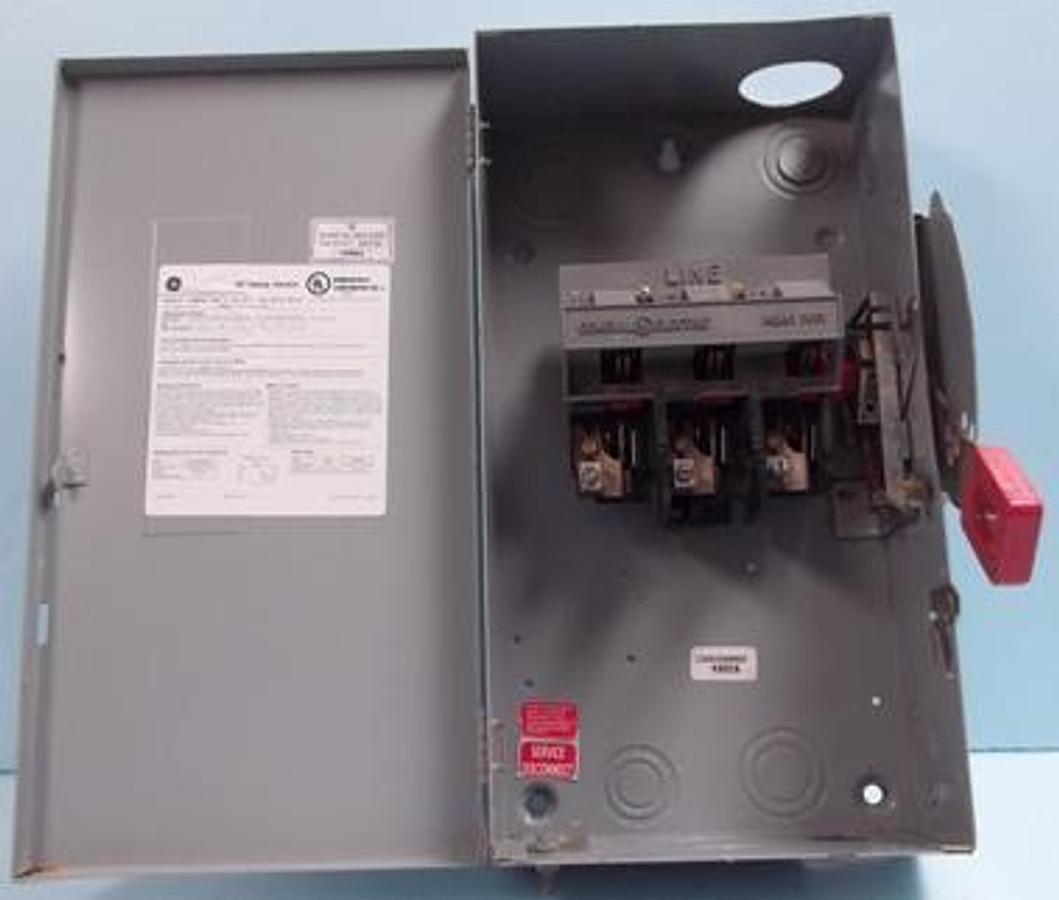

GENERAL ELECTRIC HEAVY DUTY SAFETY SWITCH 60 AMP 600V. AC

GENERAL ELECTRIC HEAVY DUTY SAFETY SWITCH 60 AMP 600V. AC MAX. HP 60 NP1578000B CATALOG NO. THN3362 MODEL: 10 AMPS: 60 A VOLTS: 600 VAC / 250 VDC TYPE: 1 INDOOR ENCLOSURE SUITABLE FOR USE AS SERVICE EQUIPMENT HORSEPOWER RATINGS VOLTS/PHASE 600 V. 1 PH* STD. - MAX TIME DELAY 25 600 V. 3 PH STD. - MAX TIME DELAY 60 480 V. 1 PH* STD. - MAX TIME DELAY 15 480 V. 3 PH STD. MAX TIME DELAY 50 250 VDC* STD. - MAX TIME DELAY 10 125 VDC STD. - MAX TIME DELAY 5 *USE ANY 2 POLES THIS SWITCH IS SUITABLE FOR USE ON A CIRCUIT CAPABLE OF DELIVERING NOT MORE THAN 10,000 RMS SYMMETRICAL AMPERES 600 V MAXIMUM WHEN PROTECTED BY FUSES OR AN OVER CURRENT DEVICE RATED 60 A MAXIMUM TERMINALS (USE 60 OR 75 DEG. C. CU OR AI WIRE) LINE AND LOAD #12-2 CU,AI TIGHTEN TO 45-50 IN.LBS. ALUMINUM WIRE CAN CAUSE OVERHEATING TO CONNECT ALUMINUM WIRE STRIP INSULATION WITHOUT NICKING WIRE WIRE BRUSH AND COAT WITH ANTIOXIDANT COMPOUND SUCH AS AINOX OR PENETROX A13 INSERT CONDUCTOR AND TIGHTEN PER TORQUE SPECIFICATION TURN OFF SWITCH BEFORE REMOVING OR INSTALLING FUSES TURN POWER OFF AHEAD OF SWITCH BEFORE DOING OTHER WORK INSIDE REPLACE ALL PARTS INSTALL LINE SHIELD ON SWITCH AND CLOSE COVER BEFORE TURNING POWER ON UNLESS CLASS R OR J FUSES ARE USED THIS SWITCH MAY PRESNT A RISK OF FIRE OR INJURY TO PERSONS IF INSTALLED ON CIRCUITS CAPABLE OF DELIVERING MORE THAN 10,000 AMPERES RMS SYMMETRICAL INFORMATION REGARDING PERFORMANCE UNDER UNUSUAL CONDITIONS SHOULD BE OBTAINED FROM THE GENERAL ELECTRIC COMPANY EXAMPLES OF UNUSUAL SERVICE CONDITIONS ARE TEMPERATURE ABOVE +50 DEG. C. (+122 DEG. F.) OR BELOW -30 DEG. C. (-22 DEG. F.) ALTITUDE ABOVE 6600 FEET CORROSIVE OR EXPLOSIVE ENVIRONMENTS UNDUE VIBRATIONS SHOCK OR TILTING OR UNIQUE OPERATING DUTIES REPLACEMENT PARTS AND ACCESSORIES ITEM AUXILARY SWITCH GE CATALOG NO. THAUX64D(DPDT) NEUTRAL GE CATALOG NO. TN162 MOD 4 EQUIPMENT GROUND GE CATALOG NO. TGL1 WIRE SIOZES TYPE LARGE HOLES SOLID 14-8 CU STRANDED 10-4 CU 6-4 AI SMALL HOLES SOLID 14-8 CU 12-8 AI STRANDED 12-8 CU-AI 331A3225P9 UL LISTED ENCLOSED SAFETY SWITCH ISSUE NO. AL-51 CSA ENCLOSED SWITCH 15064.
