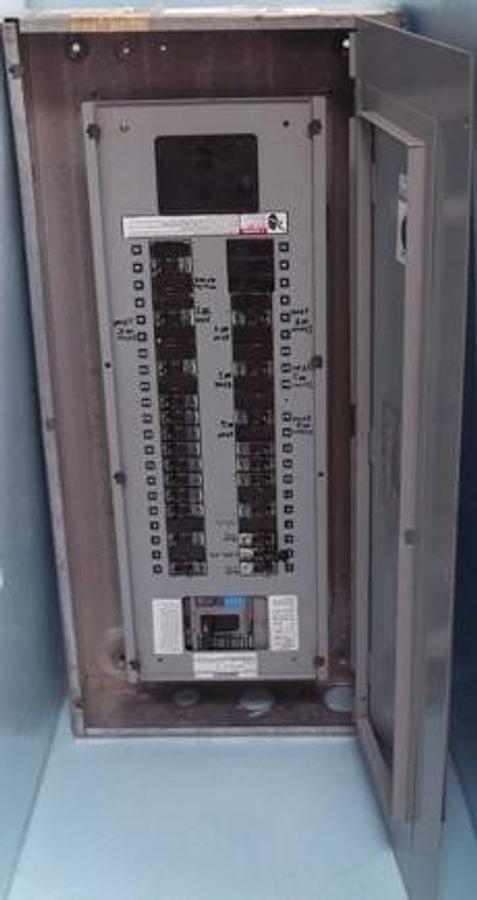

SIEMENS ENERGY & AUTOMATION

SIEMENS ENERGY & AUTOMATION INC. TYPE 1 ENCLOSURE 11-1129-03 REV. 14 PANEL TYPE P1 SYSTEM 480Y/277 3 PH 4 250 AMPS MAX (SEE MAIN DEVICE OR BREAKER) PROVISIONS ARE FOR 100A MAX DEVICE TYPES BQD BQD BQD MINIMUM SIZE UL LISTED CABINET OR CUT-OUT BOX FOR THIS PANEL: 20" W X 5.75" DP X 44" H 15-A-1034-01 REV. 3 CATALOG NUMBER P1E42ML250CTS SALES ORDER NUMBER 79-50080 CUSTOMER MARKING HA: ITEM NUMBER C00020 LOCATION D DATE 05/17/04 FIELD CONDUCTORS MAY BE SIZED FOR 60 DEG. C. OR 75 DEG. C. CU OR AL UNLESS OTHERWISE NOTED ON THE DEVICE USE SIEMENS QF-3 FILLER PLATES TO COVER UNUSED 1" CIRCUIT SPACES FIELD INSTALLABLE KITS TO ADD MAINS AND TO CUSTOMIZE THE PANEL ARE LISTED ON THE REAR OF THE DEAD FRONT THE SHORT CIRCUIT RATING OF THIS PANEL BOARD IS 150,000 RMS SYMMETRICAL AMPERES AT 480 VOLTS MAX. OR 22,000 RMS SYMMETRICAL AMPERES IF EQUIPPED WITH MAIN LUGS WITH FEED-THRU LUGS WITH NO PROTECTIVE DEVICE INSTALLED WHICH EVER IS LOWEST UNLESS A SERIES COMBINATION RATING IS UTILIZED ADDITIONAL OR REPLACEMENT BREAKERS SHALL BE OF THE SAME MANUFACTURE AND TYPE AS THOSE INSTALLED AND SHALL HAVE EQUAL OR GREATER SHORT CIRCUIT RATINGS IF SERIES COMBINATION RATINGS ARE UTILIZED SUITABLE FOR USE AS SERVICE EQUIPMENT ONLY WITH A MAIN OVER CURRENT DEVICE OR WHEN NOT MORE THAN SIX MAIN DISCONNECTING MEANS ARE PROVIDED AND WHEN NOT USED AS A LIGHTING ANS APPLIANCE BRANCH CIRCUIT PANEL BOARD SEE ARTICLE 408.14 OF THE NEC IF MORE THAN 10% OF THE BREAKER POLES ARE SUPPLYING LIGHTING AND APPLIANCE CIRCUITS THEN THIS UNIT IS NOT TO EXCEED 42 CIRCUITS NEC ARTICLE 408.14 AND 408.15 BREAKER HANDLE IN THE INTERMEDIATE POSITION INDICATES TRIPPED TO RESET MOVE THE HANDLE TO THE EXTREME OFF POSITION THEN ON 15-A-1035-01 REV. 3 UL LISTED ELECTRIC CABINET FRONT ISSUE NO.S 0023 WITH 1. SIEMENS SENTRON SERIES CIRCUIT BREAKER CAT. NO. FXD63B200 SERIES C AMPS/A 200 A VOLTS MAX 600V~ TYPE FXD6-A POLE 3 CAL. BASE 40 DEG. C. CURRENT INTERUPTING RATING (MAXIMUM RMS SYMMETRICAL) 65KA 240V ~ 50/60HZ 35KA 480V ~ 50/60HZ 22KA 600V ~ 50/60HZ LUG INFORMATION 60/75 DEG. C. AWG [MM2] TA1FD350A 6-1[13,3-42,4]CU/AI TORQUE LB.-IN.[NM] 120[13.6] 1/0-350[53,4-177]CU/AI TORQUE LB. IN.[NM] 275[31,1] TC1FD350 6-1[13,3-42,4]CU TORQUE LB. IN. [NM] 120[13,6] 1/0-350[53,4-177]CU TORQUE LB. IN [NM] 275[31,1] CCF250 SEE INSTRUCTIONS SPECIAL PURPOSE NOT FOR GENERAL USE WHE USED WITH TACFD04 14-4[2,0-2,1]CU 35 [3,9] 6-4[13,3-21,1]AI 35[3,9] USE OUTER POLES FOR SINGLE PHASE NOM CSA LR13077 TIPO CAAR HACR TYPE UL LISTED CIRCUIT BREAKER J-1361 E10848 PC.NO. 810419BK00 THIS DEVICE IS EQUIPPED WITH THE ACCESSORIES LISTED BELOW SEE THE SIDE OF THE DEVICE FOR ELECTRICAL DATA LEFT POLE RIGHT POLE IEC 947-2 ~50/60HZ INTERRUPTING RATINGS VOLTS (U) RMS (ICU) SYMM (ICS) 220/240V~ 65KA 33KA 380/415V~ 35KA 18KA CE C.NO. 810416F00 200A MAG.ADJ. 900-2000 1 LO 8 HI PC.NO. 71196A00 WITH 8. SIEMENS CIRCUIT BREAKER TYPE BQD 40 DEG. C. VOLTS M AX: 480Y/277VAC INTERRUPTING RATING MAX. RMS SYMMETRICAL AMPS 65,000 A @ 240 VAC 14,000 A @ 480Y/277VAC CU-AI 60/75 DEG. C. WIRE RATING 15-40A SIZE 14-10 LB.IN.35 SIZE 8 LB.IN.40 RATING 45-100A SIZE 6-4 LB.IN.45 SIZE 3-1/0 LB.IN.50 UL LISTED CIRCUIT BREAKER 3 POLE UNIT ISSUE NO. SA-9753 HACR CSA HID CSA 800121GK00 WITH 15. SIEMENS CIRCUIT BREAKER TYPE:BQD 40 DEG. C. VOLTS MAX 377VAC 125VDC INTERRUPTING RATING MAX RMS SYMMETRICAL AMPS 65,000A @ 120VAC SWD 14,000A @ 277VAC HACR 14,000A @ 125VDC HID CU/AI 60/75 DEG.C. WIRE RATING 15-40A SIZE 14-10 LB.IN.35 SIZE 8 LB.IN.40 RATING 45-100A SIZE 6-4 LB.IN.45 SIZE 3-1/0 LB.IN.50 UL LISTED CIRCUIT BREAKER 1 POLE UNIT ISSUE NO. SA-3252 CSA 800121A19.
